The sea was angry, and whipped the rode, and though tormented, the stubborn anchor held till morning.....
And here, the Anchors and Rodes of the SCAMP "Argo":
- Primary Anchor: 11lb Stainless Steel Lewmar Bruce Anchor on 6 Feet of 3/8" Stainless Chain, 5/16" stainless steel anchor shackles, and 200 feet of 1/2" Nylon Rode
- Secondary Anchor: Fortress F-7 Danforth on 150 feet of 3/8" Nylon Rode

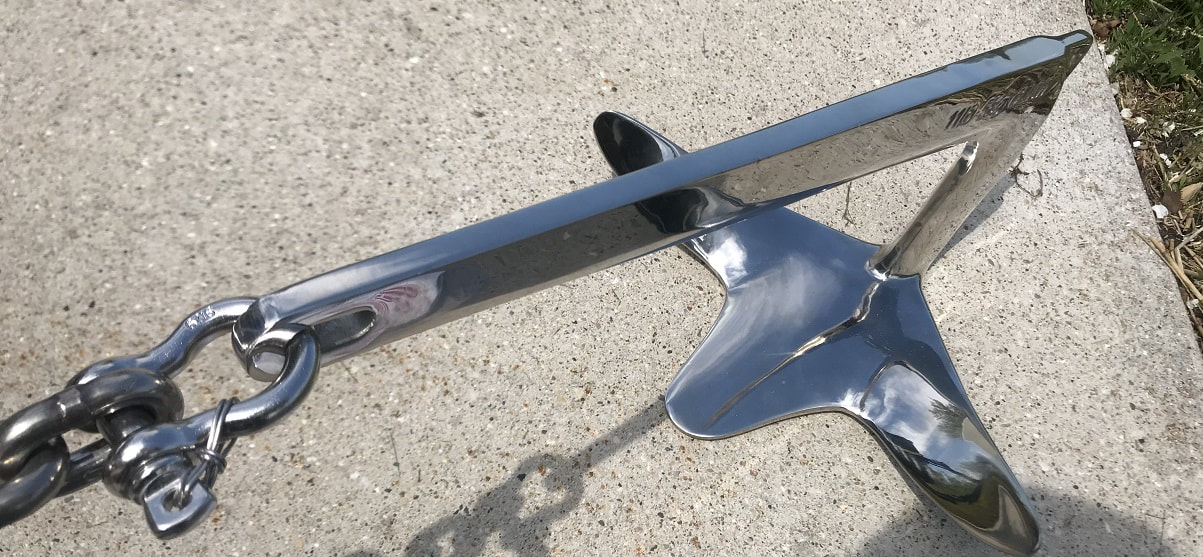

11lb Stainless Lewmar Claw Anchor, Detail showing moused stainless steel anchor shackle

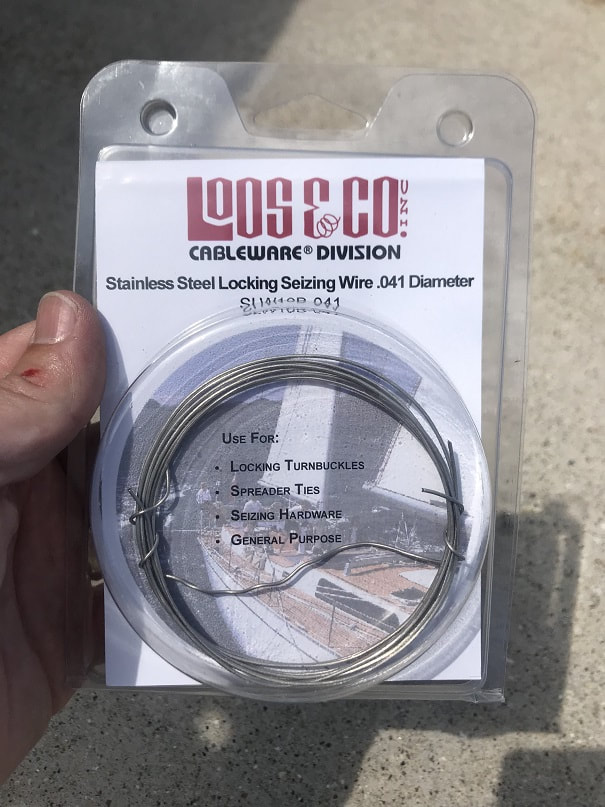

This is the wire I used for mousing the anchor shackles on the primary and secondary anchor shackles.

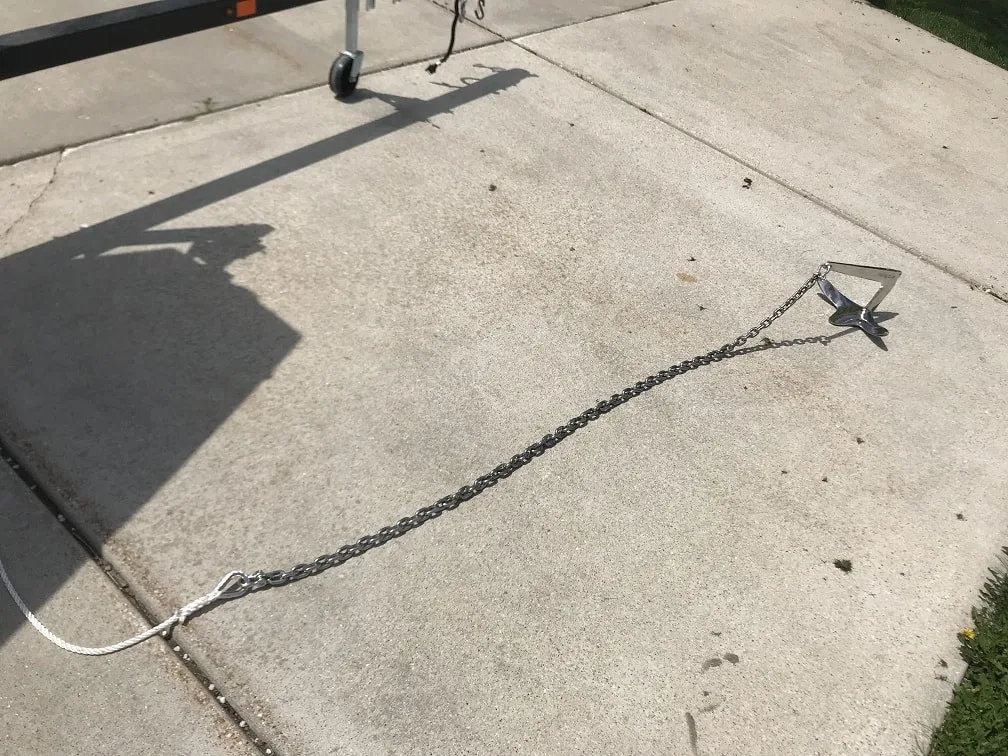

Anchor, chain, moused anchor shackles.

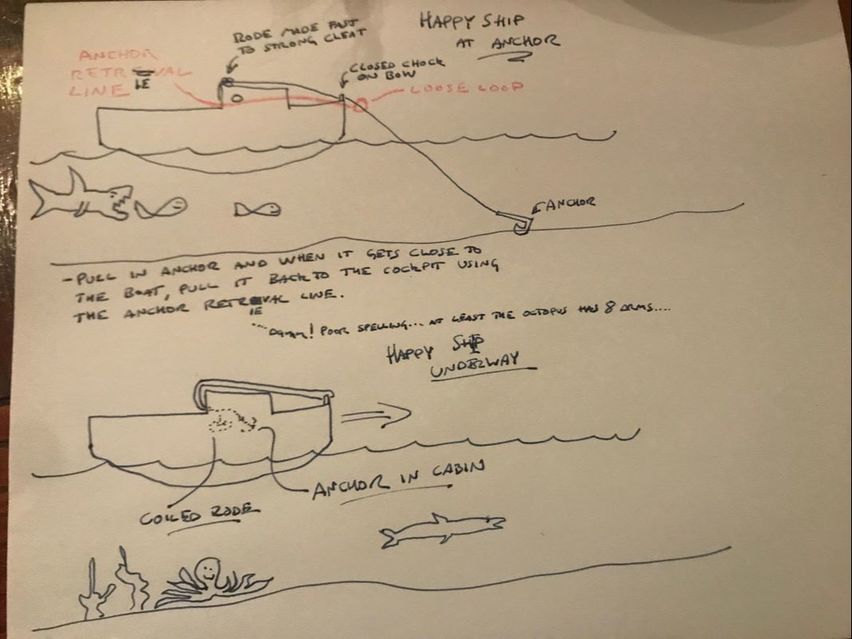

Extremely detailed engineering, to-scale drawing of the anchor system. This type of anchor setting and retrieval system is logical for small boats with foredeck configurations such as the SCAMP, which make accessing the bow a challenge.
- It is good when anchoring, to have the anchor rode fixed to the center bow of the boat. The boat is likely designed to take on waves directly on the bow, and if anchored from the bow you will be taking waves mostly on the bow.
- The SCAMP is not designed for one to walk up on the foredeck at the bow and retrieve the anchor....the deck is too small. One can walk up there, but not reasonably.
- So, one could set an anchor off the side of the boat, amidships.......which would result in the anchor pulling the boat broadside into the waves and wind.....or...
- One could set the anchor over the side amidships, but then reach up and set the anchor rode into an open chock at the bow and then the rode would pull perfect.......but what if while you are sleeping, wily seas toss the rode out of the open chock at the bow? I like this open-bow-chock system, and it probably works 99% of the time, but I would be a bad sleeper worrying about the anchor line popping out of that chock....so, I used a closed-chock at the bow.

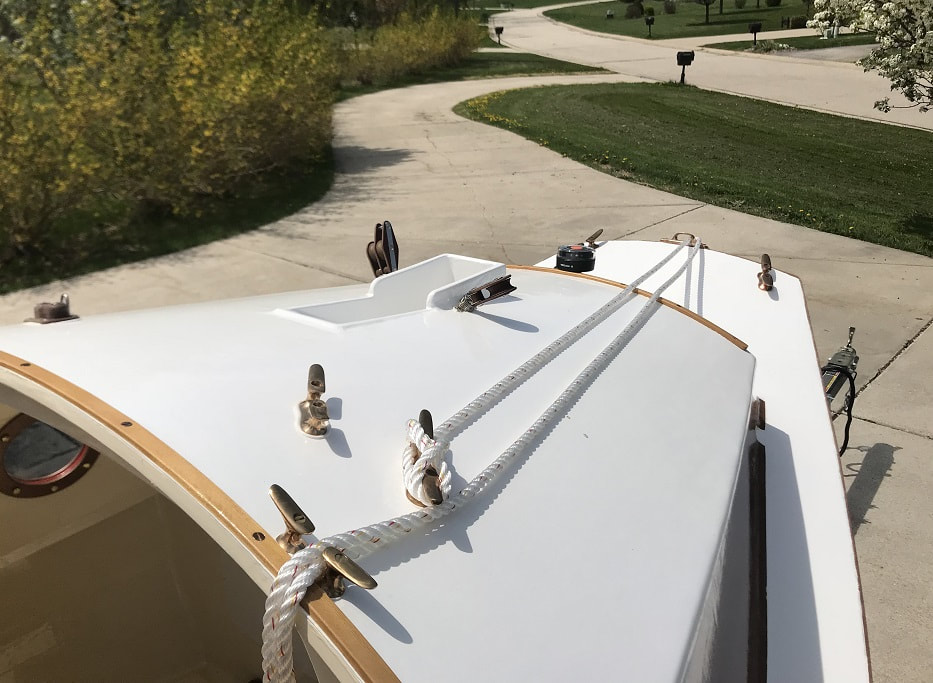

Top view of anchor system with the anchor in the boat.

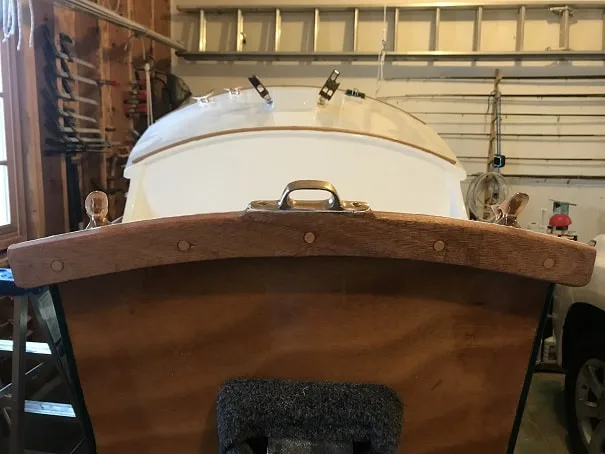

View of closed bow chock, on a platform which is angled up to point at the anchor rode cleat on the roof top.

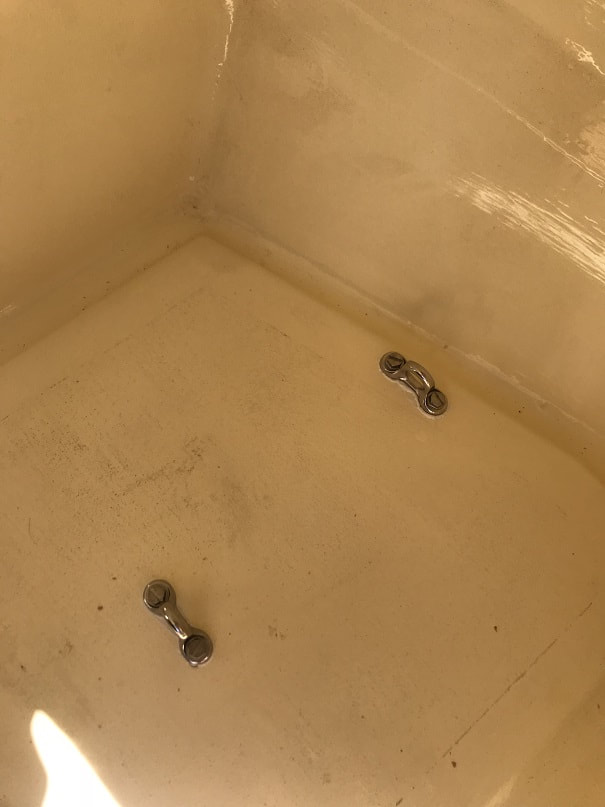

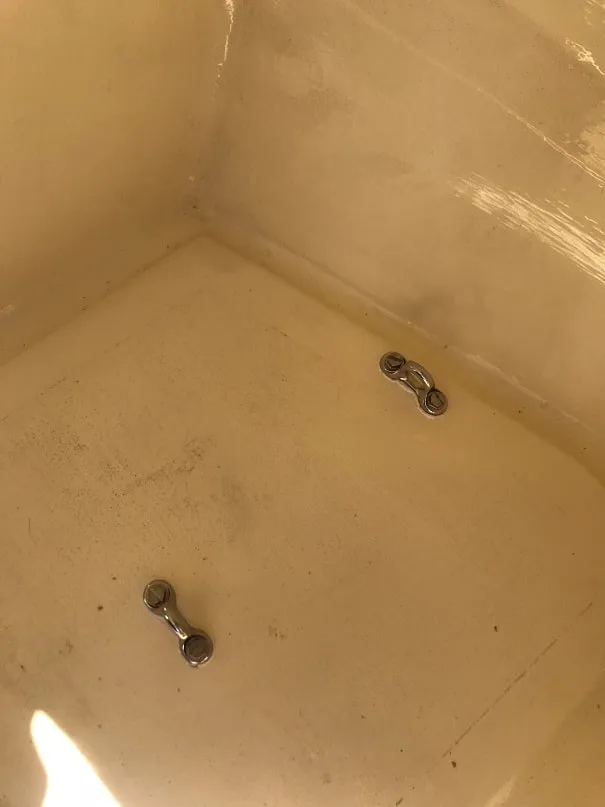

Pad eyes, mounted to the veranda floor, will be used to secure the anchor and rode so that in a capsize they do not dangerously fly around the boat.

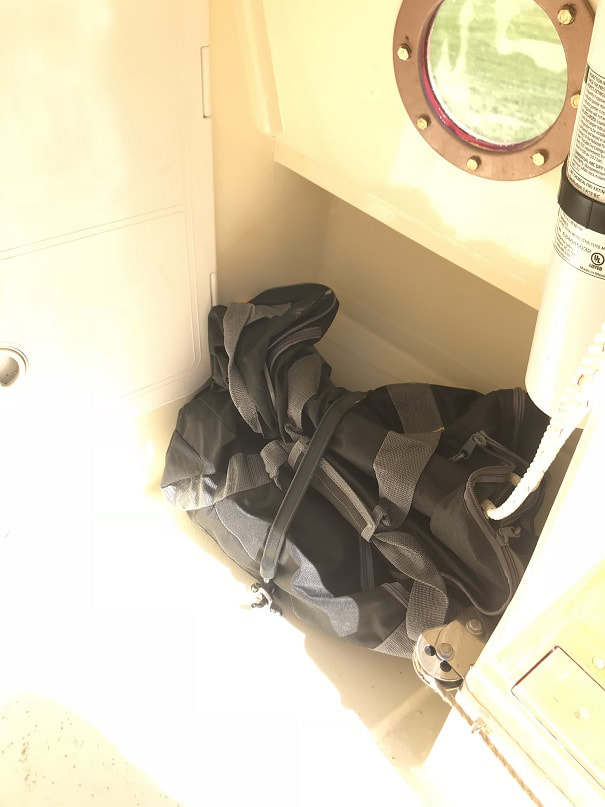

Anchor, chain rode, rope rode, all in a canvas duffel and secured to the floor with a bungee that can be quickly loosened to access the anchor.

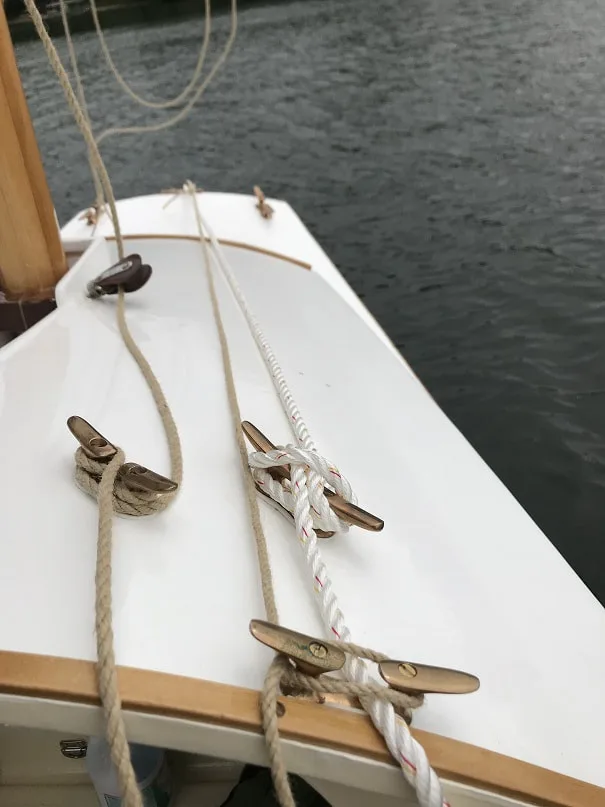

The slack hemp line on the left is the yard halyard, the middle hemp line is the short anchor-line retrieval line, and the white line to starboard is the anchor rode.
