3D Printed Object Gallery

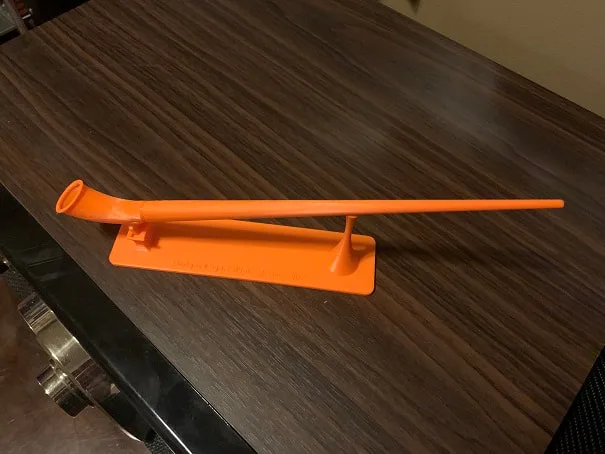

above: I designed and made this Alphorn pen and stand. The bell of the horn is the pencap.
The finished painted version along with drawings, may be seen below.
The finished painted version along with drawings, may be seen below.
Here is a gallery of 3D Printing projects, made using Fusion 360, Tinkercad, Prusaslicer, and printed on a Prusa i3 MK3S printer.
I will post objects that I print, starting with the most recent prints and going back to my first print. I include many .STL files below which were exported from Fusion360; the gcode files below were generated on PrusaSlicer and were generated with the intent to be printed on my Prusa i3MK3S with 0.4mm nozzle, I can't guarantee they will work on your printer or with your filament.
The .STL and .GCode files attached below are copyright protected and may be used only for personal use not for commercial use or for manufacturing objects for sale.
The .STL and .GCode files attached below are copyright protected and may be used only for personal use not for commercial use or for manufacturing objects for sale.

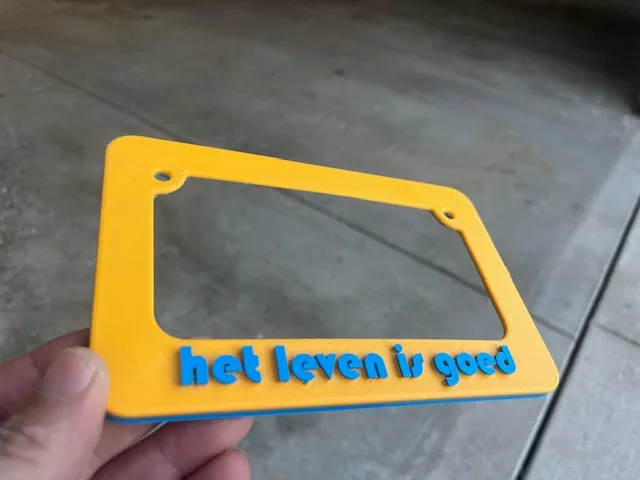

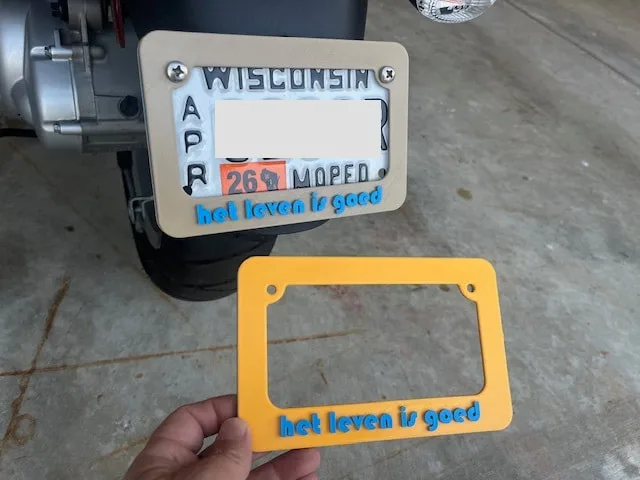

3D Printed Scooter License Plate Frame
Designed on Fusion 360 and printed on my Prusa, changing filament 3 times for different color layers. Could be called a moped tag frame, scooter tag plate frame, moped license plate bracket....all the same thing. It's a frame for the small license plates used on scooters in USA. I designed this license plate frame for my Vespa Primevera. The words are in Dutch, and mean "life is good".
3D printed scooter license plate frame
Different color ideas

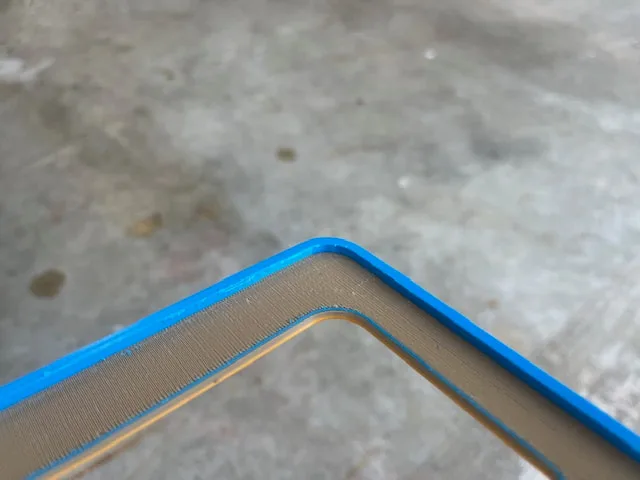

The frame is recessed for the plate to fit in.

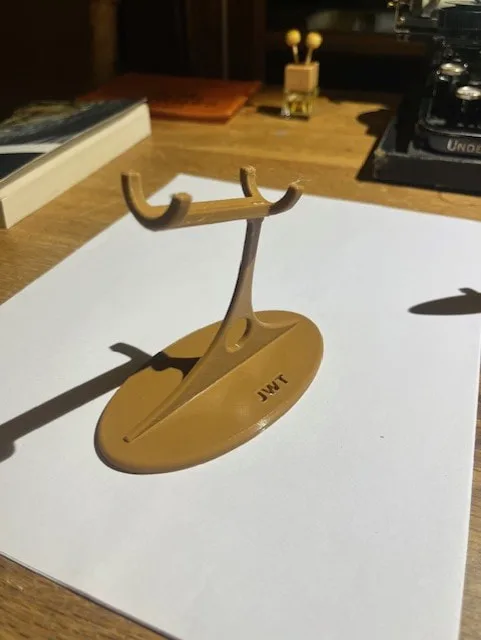

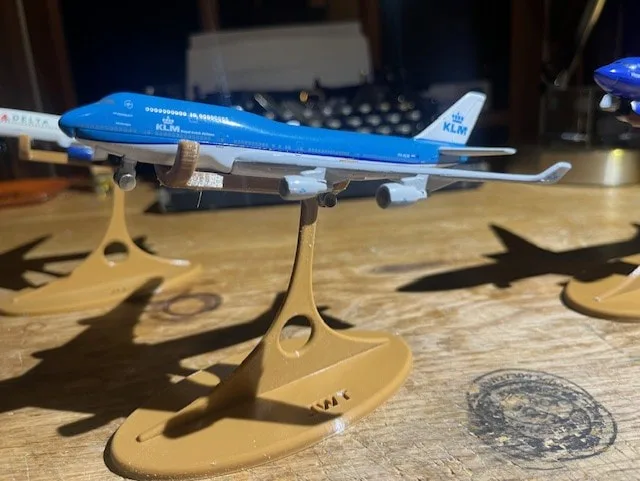

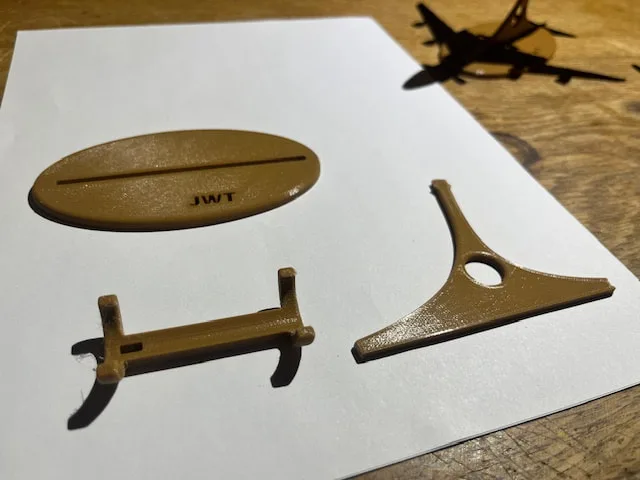

Airline Jet Model Stand
I designed this using Fusion 360 to hold various diecast airline plane models that I have. Prints in 3 pieces with no supports needed when printing (printed the cradle piece right side up with a brim).
3D Printed Alphorn
I am currently printed a full size , over 12 foot long, alphorn on the printer. There is a separate page dedicated to this project. Here is the link to the 3D Printed Alphorn Page.
This horn has been designed to be printed on a Prusa i3 MK3S, it will be printed in 27 pieces, with 3 threaded connections and the rest epoxied permanent joints.

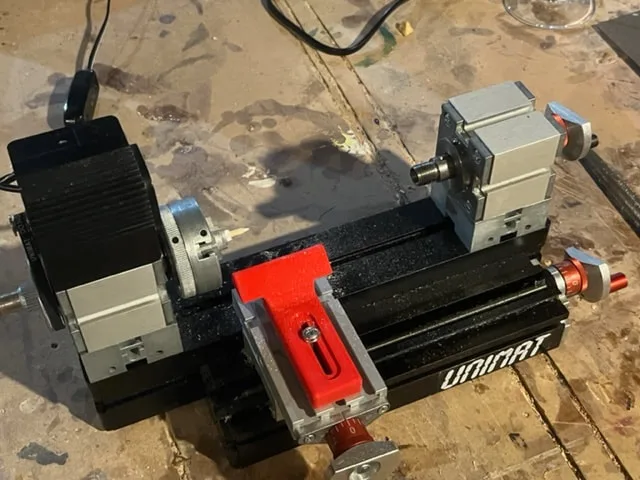

3D Printed Unimat Metalline Woodturning Attachment
I designed and printed a 100% infill PLA tool-rest for wood turning on my Unimat Metalline mini-lathe. Unimat sells a metal tool rest and they call is a Unimat Metalline Professional Wood Turning Attachment in their catalogue. I am very pleased with the one I printed. I took me a couple tries to get the height just right for the turning tools I use. Designed on Fusion 360, sliced on PrusaSlicer and printed in 100% infill on my Prusa i3 MK3S. Note that scaling will likely be required to print the attached .stl file to the correct size, for whatever reason I notice I would need to scale down these .stl files to 10% to print them at the right size.
Wood turning attachment for Unimat Metalline lathe. Note that the tool-rest is not in working position in the photo, as it would be closer to the stock in operation.

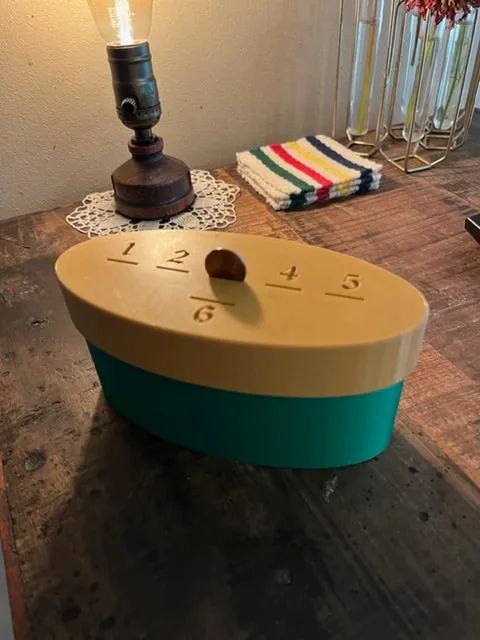

3D Printed Penny Drop Game
Designed in Fusion 360, sliced on PrusaSlicer Printed in PLA on Prusa i3 MK3S. The CAD files are .stl and I find that I need to scale them at a scale of 10% on Prusa Slicer in order to print the desired size. Either way, if you print this, a penny should fall through the 6 slot, but should just rest in, but not fall through, the 1-5 slots.
3D Printed Penny Drop Game

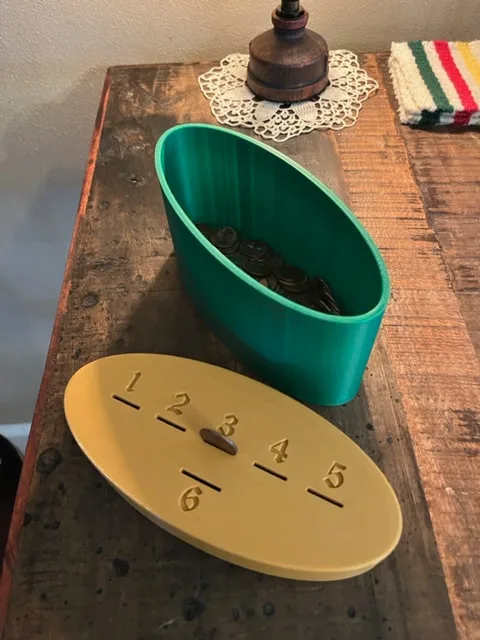

3D printed Penny Drop Game showing lid off and pennies inside.

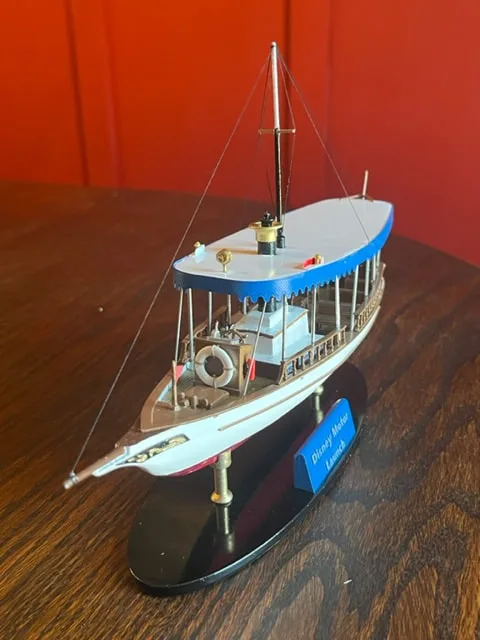

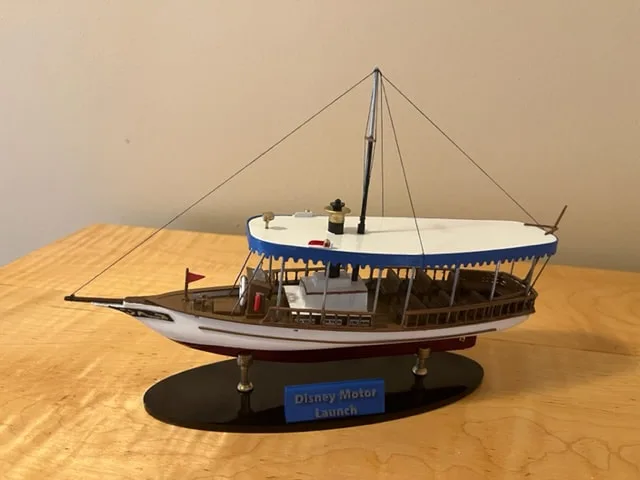

3D Printed Model of Disney Water Taxi, Disney Motor Launch Model
I scaled this from photos and drew this in about 79 pieces which I printed in PLA and painted then assembled. This is a model of the little Disney water taxis that ferry people from resorts to Magic Kingdom in Florida.
Custom model of a Disney water taxi/Motor Launch.

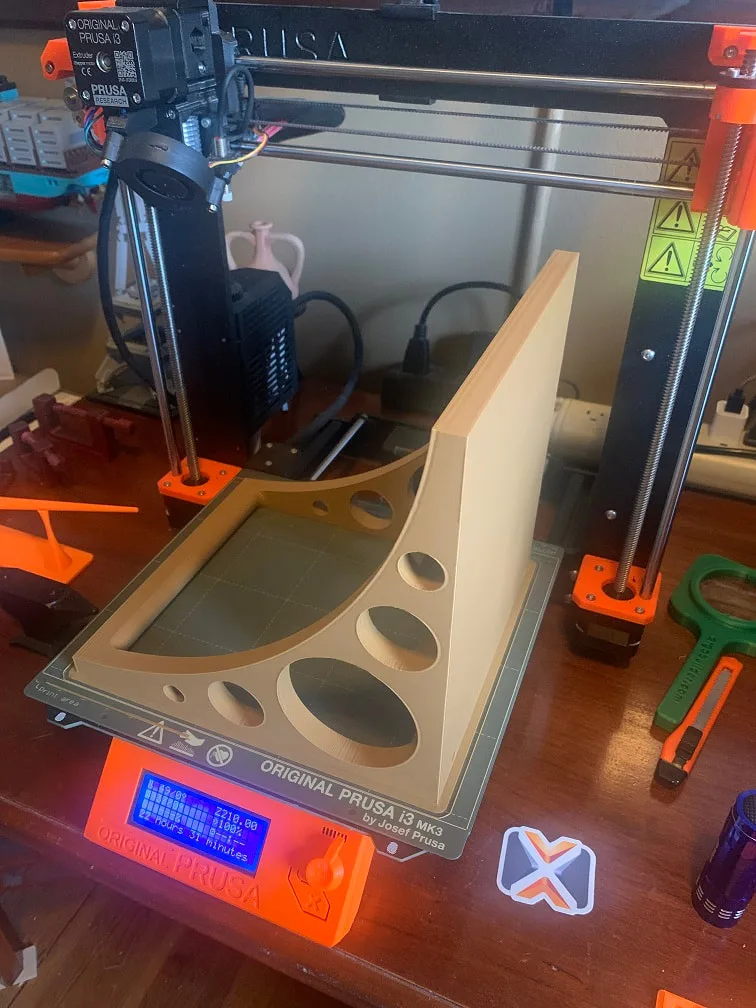

3D Printed Bookshelf
Designed on Fusion 360, printed in PLA. Designed to fit by wedging between two other shelves on my wall.

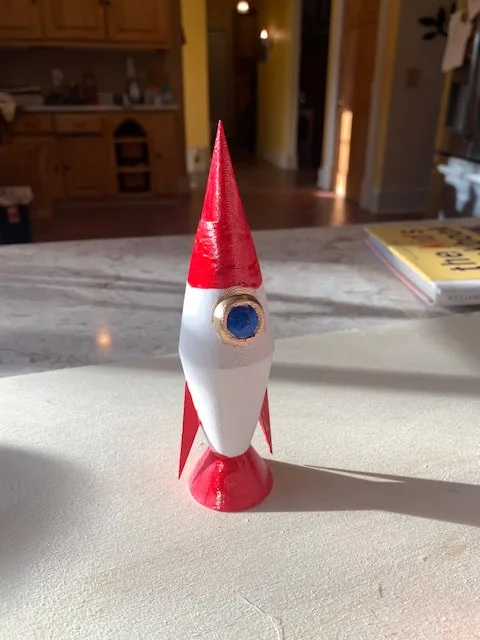

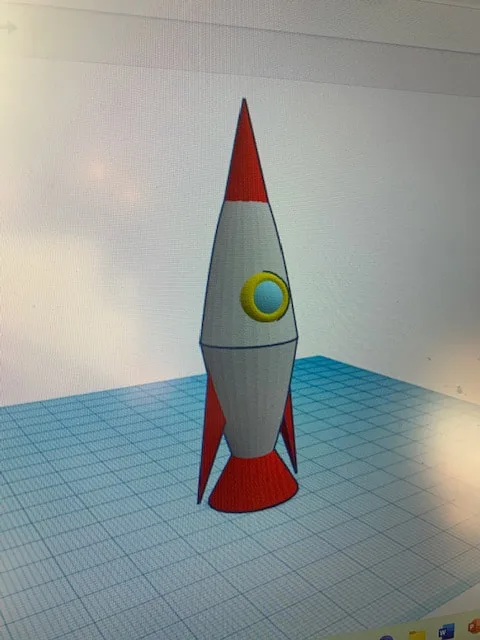

Anna's Rocket!
The kids designed this rocket on TinkerCad and we sliced it on Pruslicer and printed it in PETG on the Prusa i3MK3S. Kids painted it with enamel.

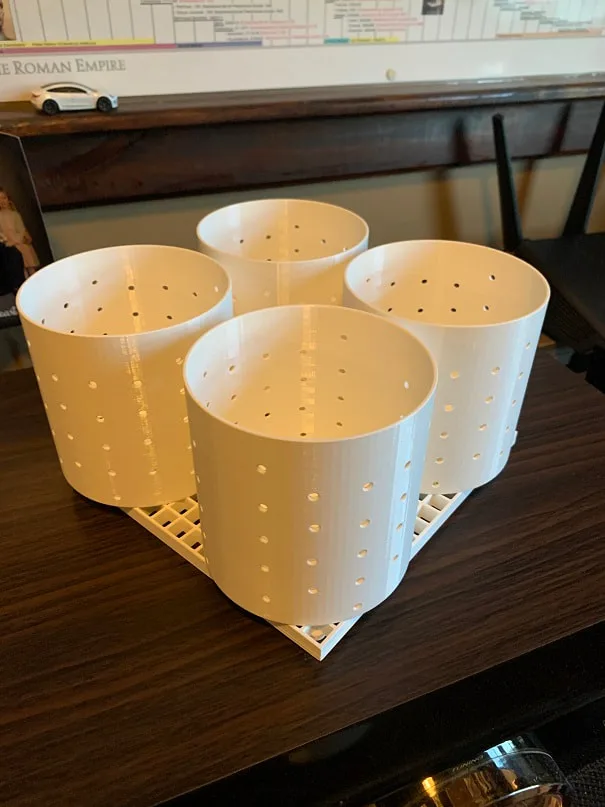

3D printed Cheese Molds
4.25" dia Camembert molds; designed on Fusion 360, printed using Prusa Slicer and printed in PLA at 100% infill on my Prusa i3 MK3S. Note that as far as I can tell, printed PLA is NOT approved for use in food containers such as this due to potential voids in the material that could harbor bacteria etc... I did it anyway, but do so at your own risk.
3D printed Camembert molds

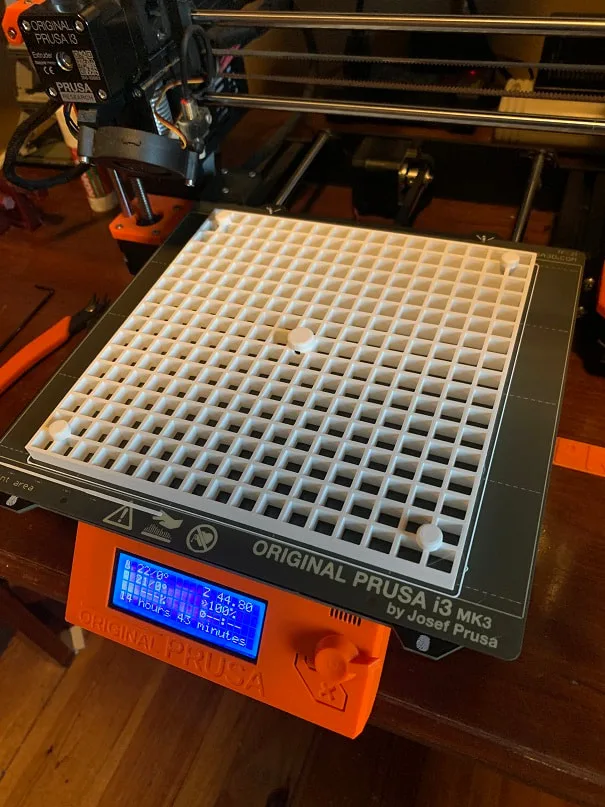

3D Printed Cheese Draining / Drying Rack
This design features a wide slats with radiused tops and bottoms, and feet that raise the rack up above the surface it rests on. Designed on Fusion 360, printed in 100% infill PLA on my Prusa i3 MK3S. As with the cheese molds, note that I don't think 3D printed PLA is approved for use in food process tools such as this, so do so at your own risk.
3D printed Cheese drying rack

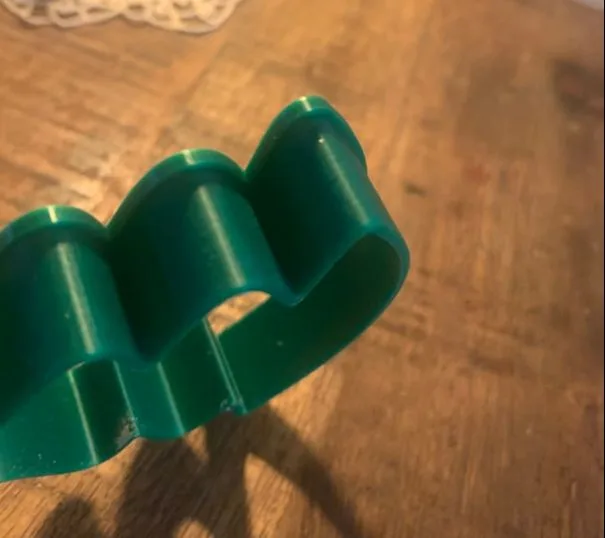

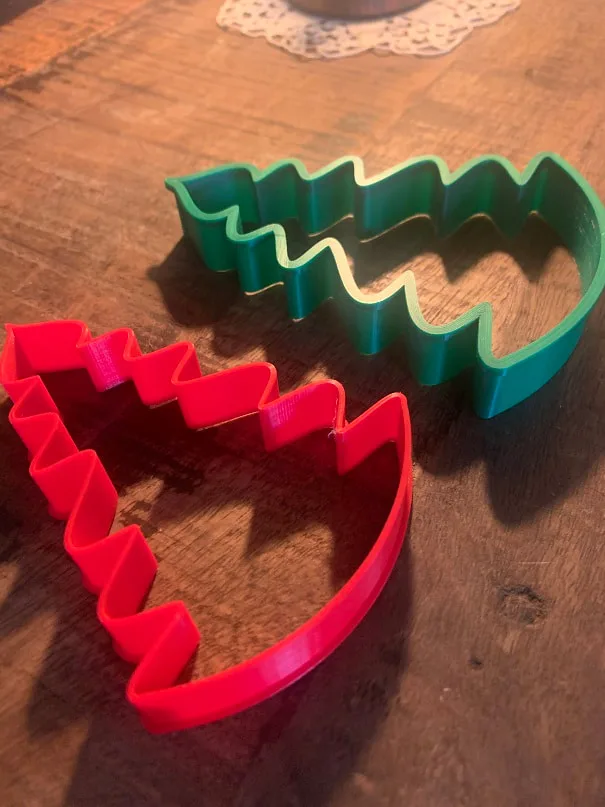

3D Printed Christmas Tree Cookie Cutter
Designed on Fusion 360 these cookie cutters feature a flanged upper edge for strength and a rounded bottom edge.
3D Printed Christmas Tree Cookie Cutter

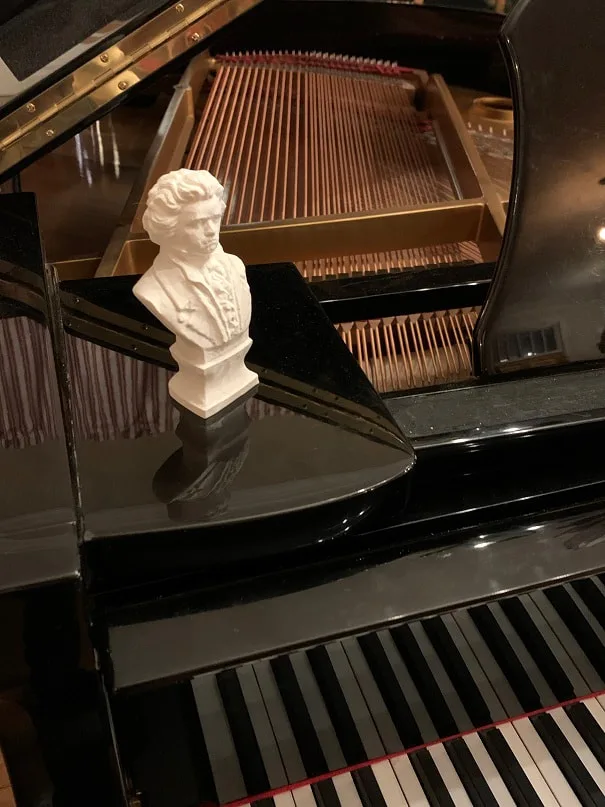

Beethoven Bust
I just finished learning to play the first movement of the Moonlight Sonata, so I wanted a little Beethoven statue. This one was posted to Thingiverse by "thenewhobbyist" https://www.thingiverse.com/thing:191218. I printed this at .07 resolution in PLA.

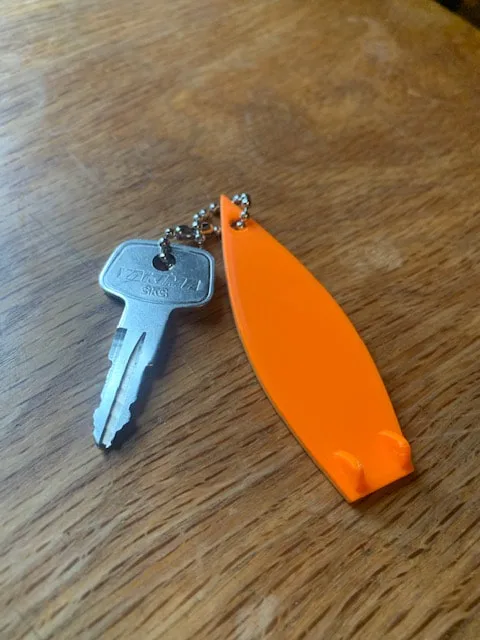

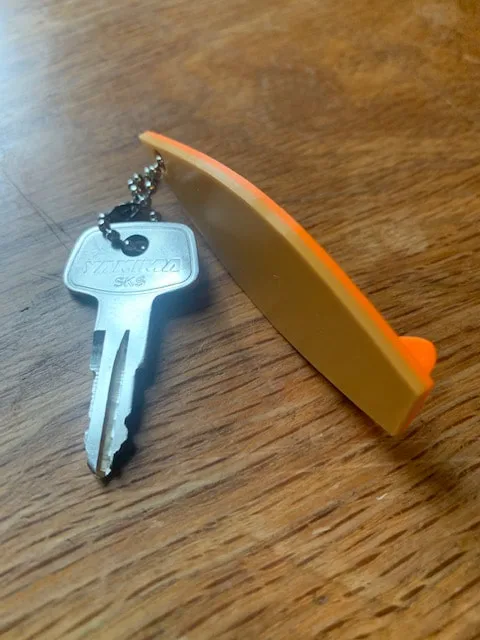

3D Printed SUP Keychain
Designed on Fusion360; based on the shape of the Kaholo Stand up paddleboard I built, included twin fins. Printed in two colors, PLA, on my Prusa i3 MK3S.

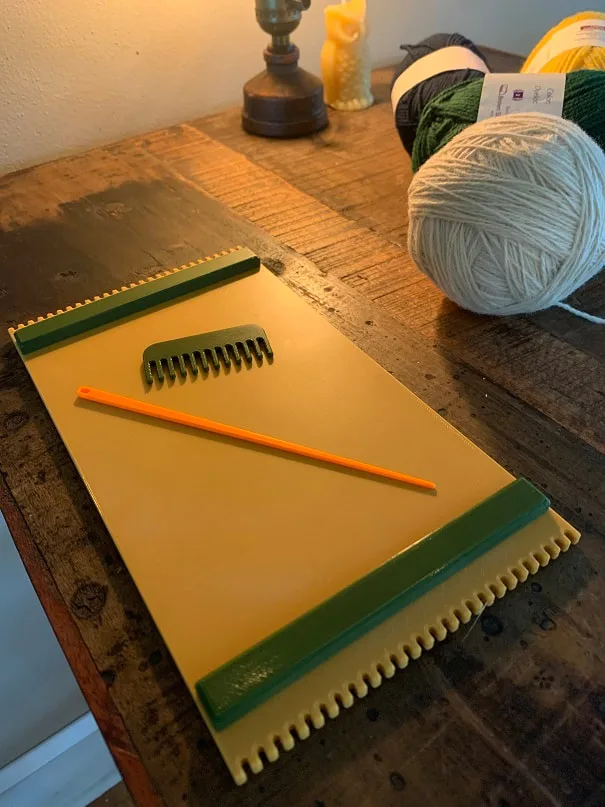

3D Printed Mini Loom
This is a 5.25" x 9.5" (133mm x 240mm) loom, including a beater (the little comb) and needle. Designed on Fusion 360 printed in PLA at 50% infill on my Prusa i3MKS ( needle and beater printed with 100% infill).
3D printed loom

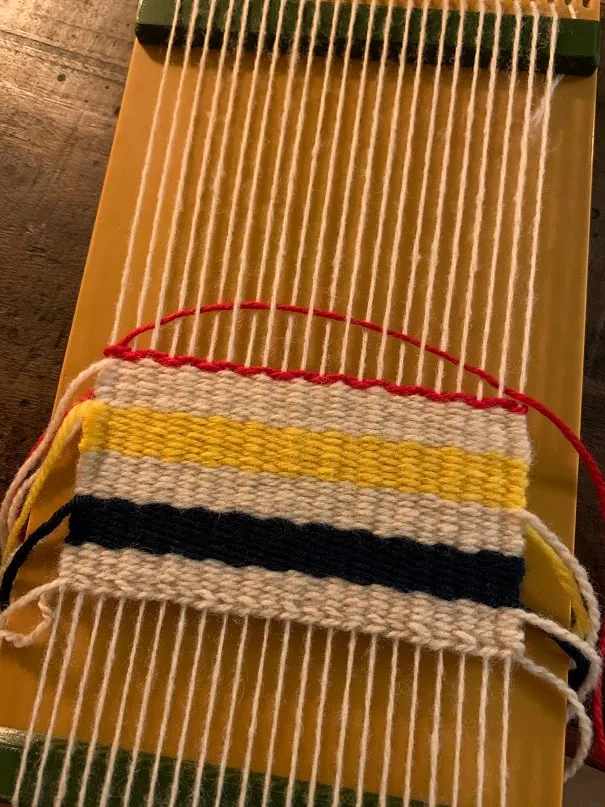

Making a wool weaving on the loom.
.stl files, scale to the size you want. The needle point was so fine that I needed to apply glue to the print bedf to get it to print properly.

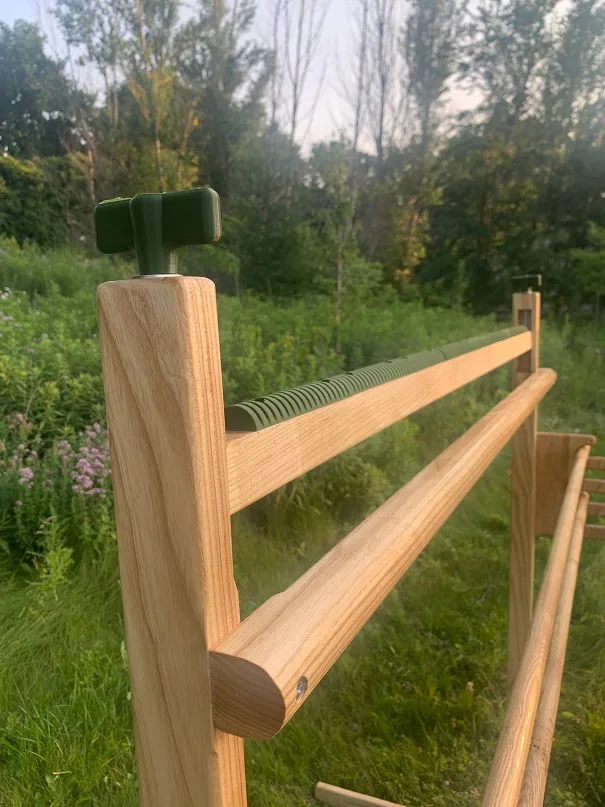

Large Tapestry Loom Hardware
I made a very large tapestry loom and printed the upper beam tensioning knobs and the warp spacing blocks. The tensioning knobs were printed with internal threads which worked perfectly.

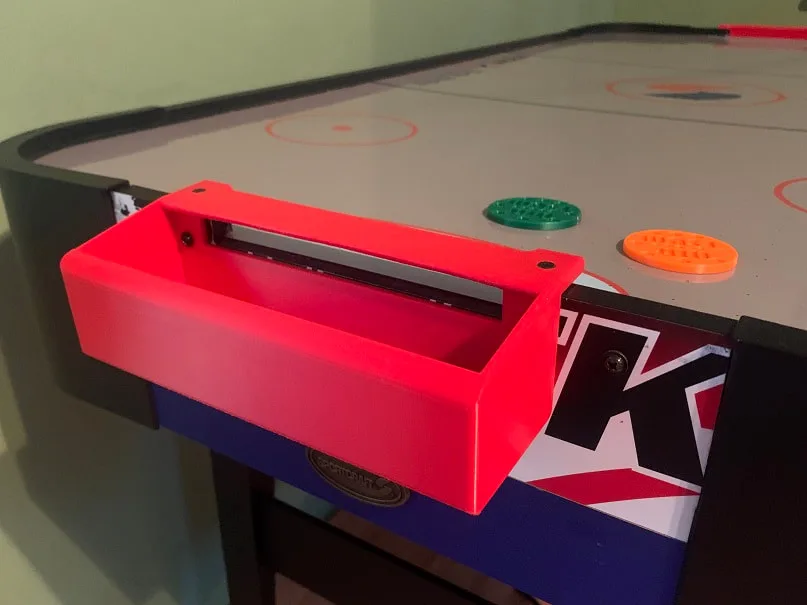

Air Hockey Table Goals and Pucks
We got an air hockey table from a friend that was missing goals and pucks. I made some thick-walled kid-proof goals and some lightweight pucks; the pucks are hollowed out on the downward facing side.

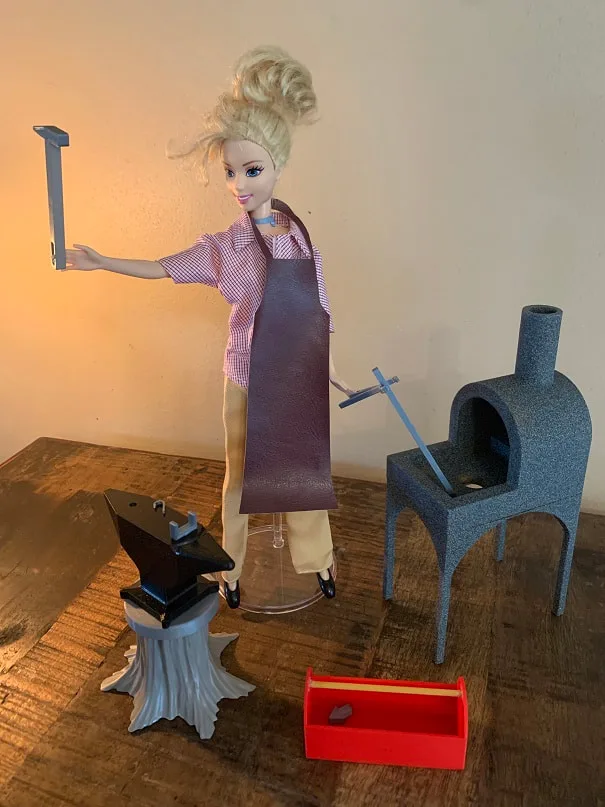

Blacksmith Barbie!
I love blacksmithing, so I made a forge with tuyere port, south German two horn anvil on a stump, tool box, hardie fork, hardie hot cut, tongs, hammer, some square stock, and a leather apron.
Blacksmith Barbie
Anvil needs to be scaled down by factor 0.10

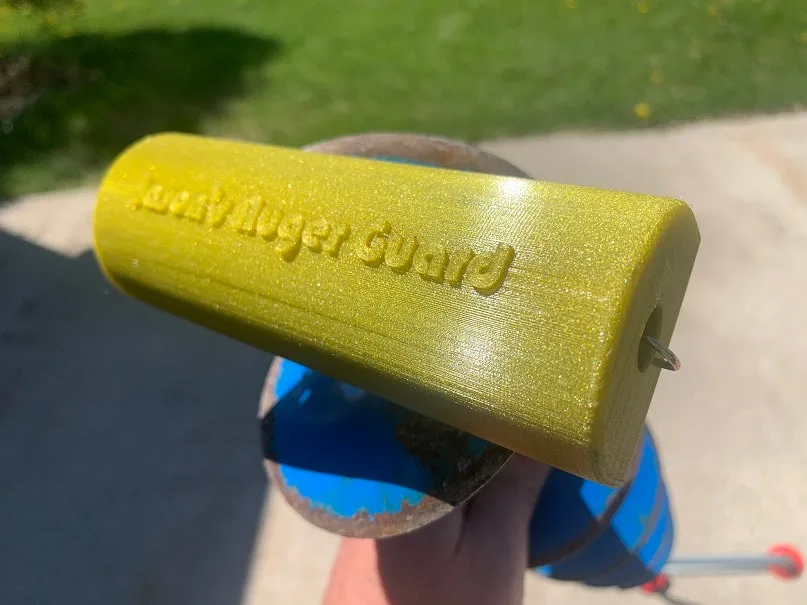

I lost the blade guard for my 5 inch manual ice fishing auger, so I designed and printed this thick-walled, tough guard in PTEG with 100% infill. It has holes in the ends for a small bungee to secure it to the auger. Works great.
3D printed Ice Auger Blade Guard.

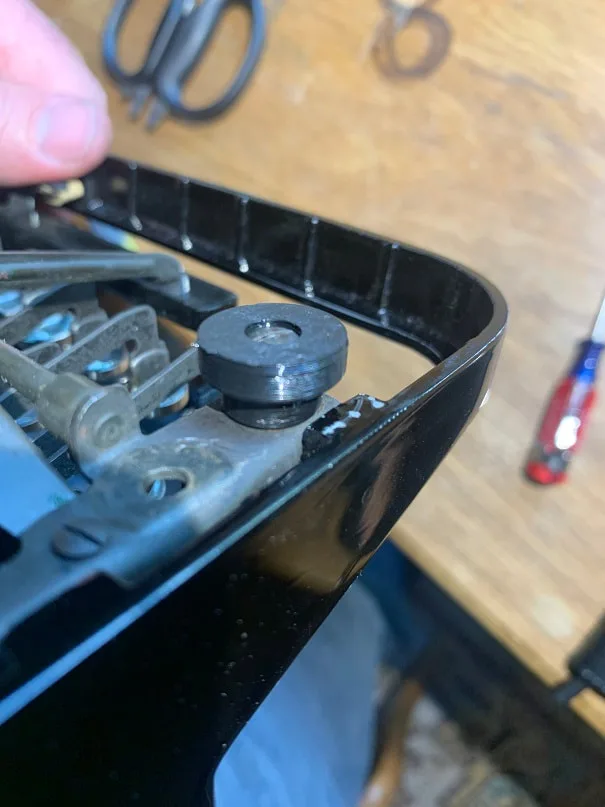

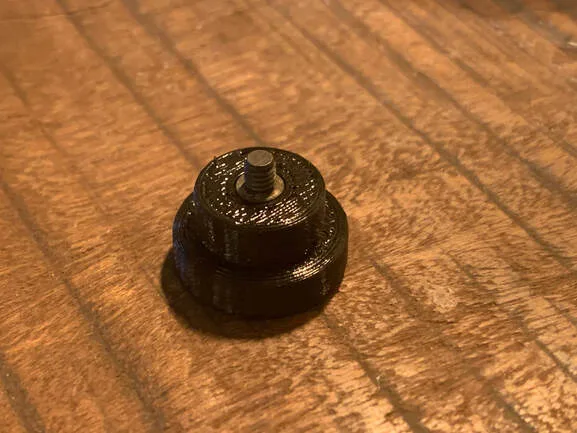

3D Printed Antique Typewriter feet. I printed these in 60A TPU first but it was too soft. Next I printed them in 30D TPE and the durometer was perfect. These are for a 1923 Underwood Standard Portable 3 Bank Typewriter. Designed on Fusion 360 and printed in Coex Flex 30D TPE on a Prusa i3 MK3s.
3D printer typewriter foot
3D printer typewriter foot

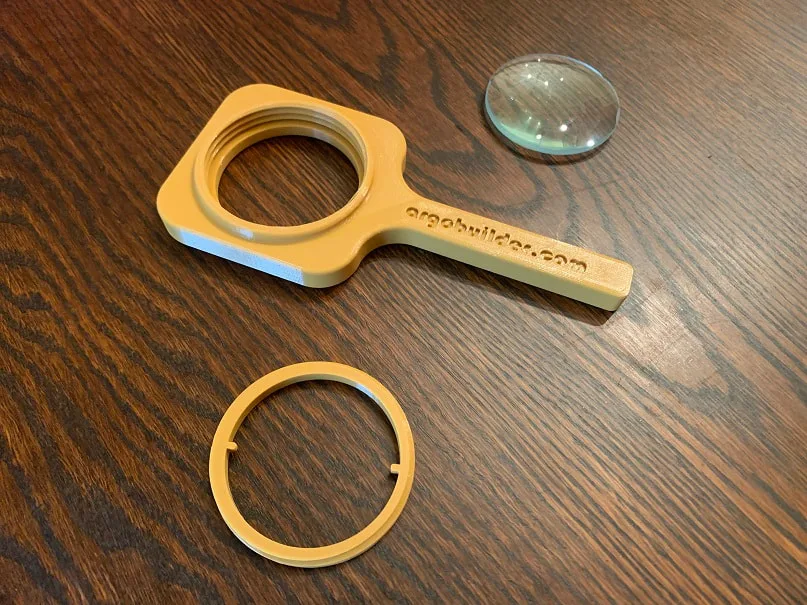

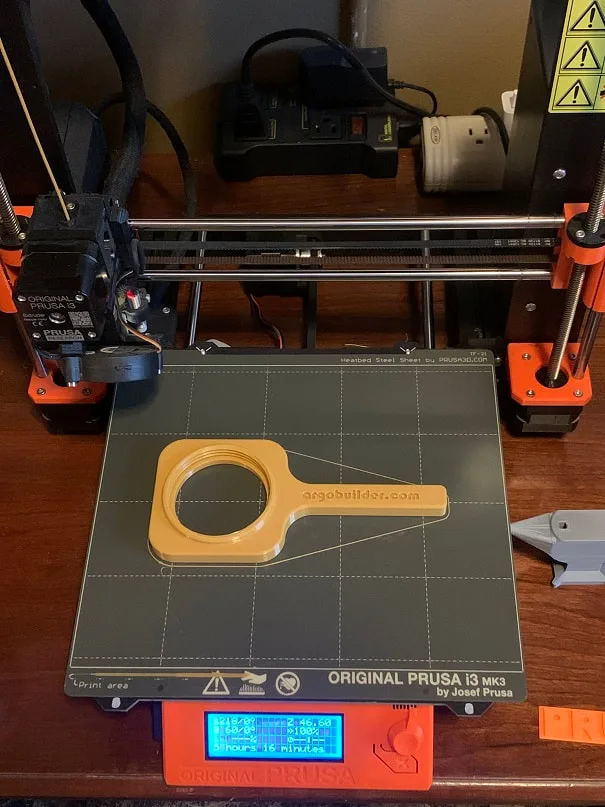

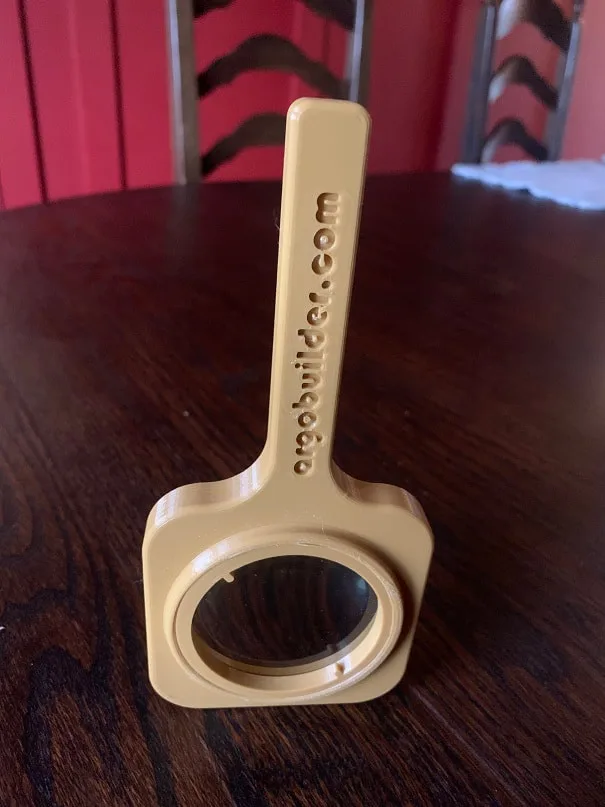

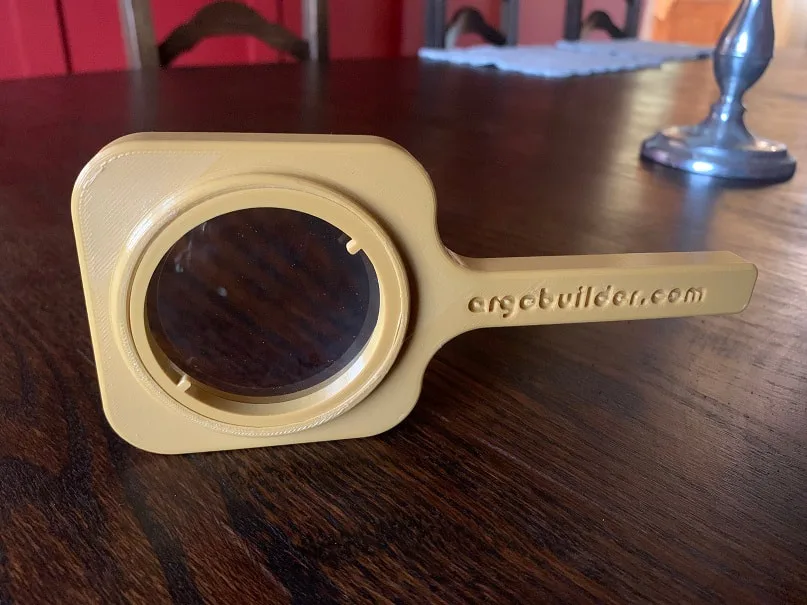

3D Printed Magnifying Glass:
3D Printed Magnifying Glass; This magnifying glass can be scaled up or down to fit various lens diameters. Drop the lens in, and then thread in the threaded retaining ring that holds the lens in place. Scale it so that the ID of the threads are 1mm larger than the ID of your lens. This magnifying glass has flat faces that allow it to stand on its own in a vertical, sideways, or flat position. I designed this on Fusion 360 and printed it in PLA on my Prusa i3MK3S with 50% infill at .20 Quality setting. I have printed these for 75mm and for 60mm lenses, the photos below are of the 60mm version.
The pieces, including threads are printed without supports and do not need and finishing after printing.
This 3D printed magnifying glass can be stood on end, saving desk space.
This 3D printed magnifying glass can also be set on its side, or of course laid flat.

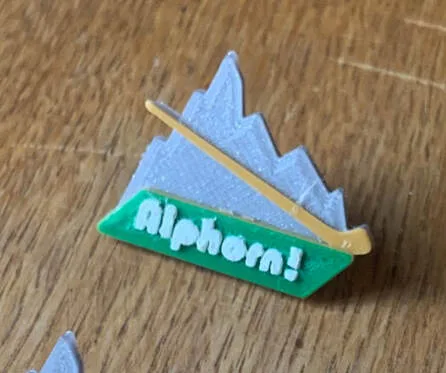

3D Printed Alphorn Pins; This is the first multi-color print I have done. I only have one nozzle, so I paused the print during printing and changes filament in order to print the different colors. Keep in mind that using this technique you can onloy print one color in any layer of the print, so you have to design the object accordingly. Designed on Fusion 360, printed on Prusa i3 MK3S using COEX PLA filament which is from Wisconsin.
Alphorn pin showing an alphorn on a meadow, with a mountain in the background. The text is tiny, but still printed well on the Prusa.

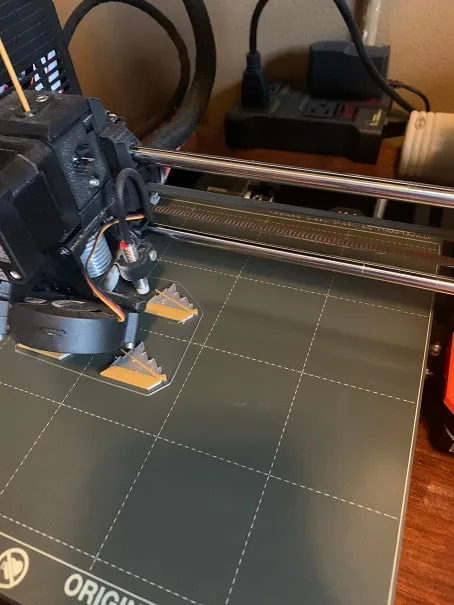

The first layer was grey, and here the second layer, which is tan, is starting to print over the grey layer.

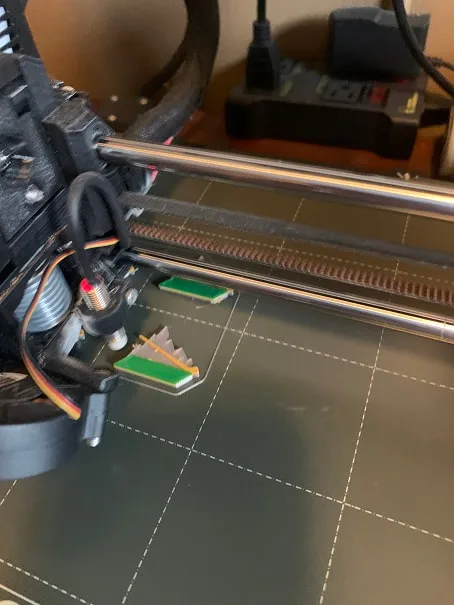

Here is the third layer, green, printing.

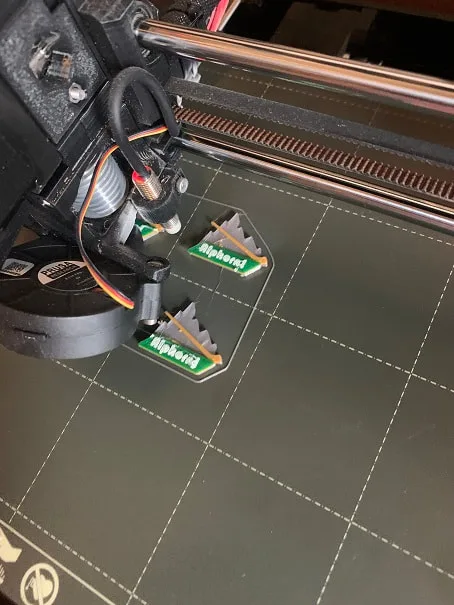

And here is the 4th , the highest, and last color/layer printing the white letters on top.

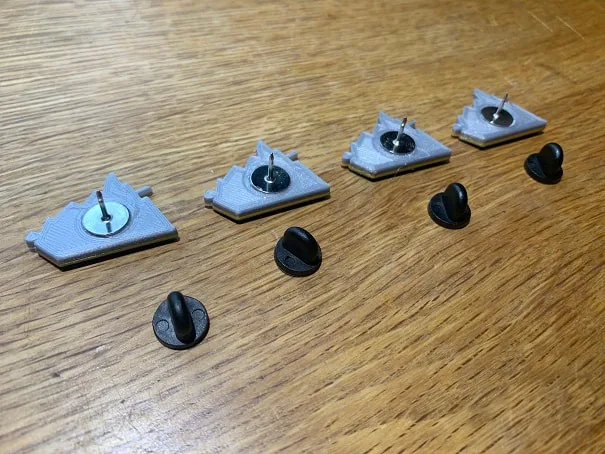

Gluing posts onto the backs.

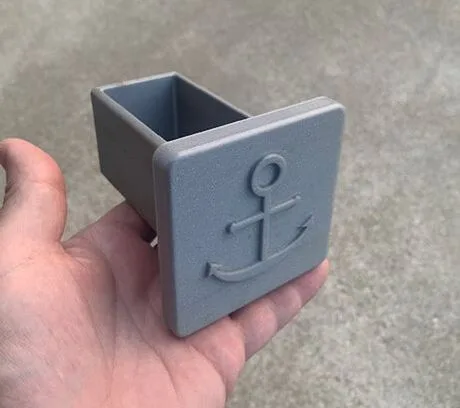

3D Printed Hitch Receiver Cap: This is for a 2" Hitch Receiver. I designed in an open compartment on the inside. Printed with 50% infill.
3D Printed Hitch Cover
You will need to scale this STL file. I printed this part with a 51mm wide across the part that inserts into the receiver

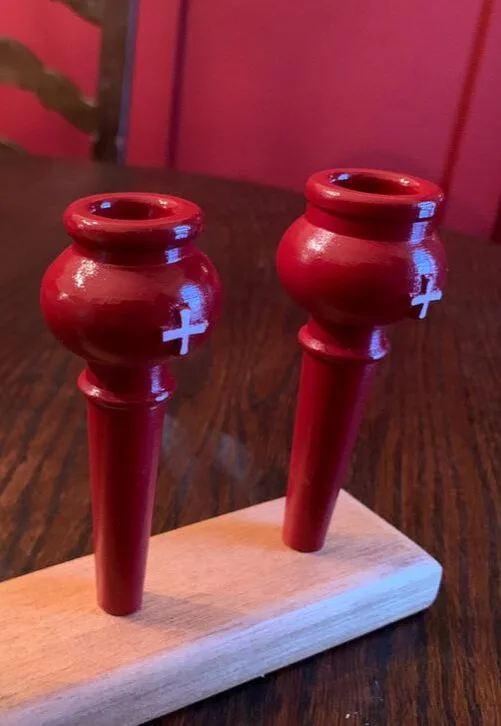

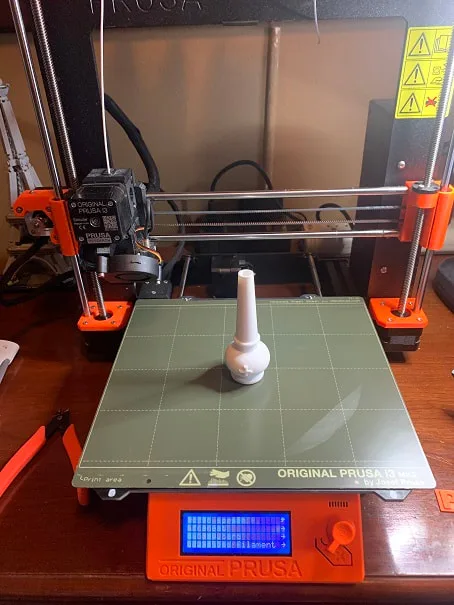

3D Printed Alphorn mouthpieces. I have worked on these designs to achieve mouthpiece designs that have good tone and range. I designed the outside to my own liking, but please note that the inner shape of the mouthpiece does not follow the outer shape. These mouthpieces are in 18mm and 20mm cup sizes and feature a tapered inner bore. I print these in PETG at .10 resolution on my Prusa i3 MK3S. These were designed on Fusion 360 and sliced with Prusa Slicer. The attached .stl files need to be scaled down by 0.10 factor in order to print at correct Alphorn mouthpiece size.
My newest design Alphorn mouthpieces feature a Swiss flag design on the outside of the cup.
.STL files of my Alphorn mouthpiece designs. Copyrighted, please only use for your own use, not for making mouthpieces for sale. I find I need to scale these down by a factor of 0.10 to print to the correct size. To double check the scale, the pdf drawings for these mouthpieces may be found on this page.

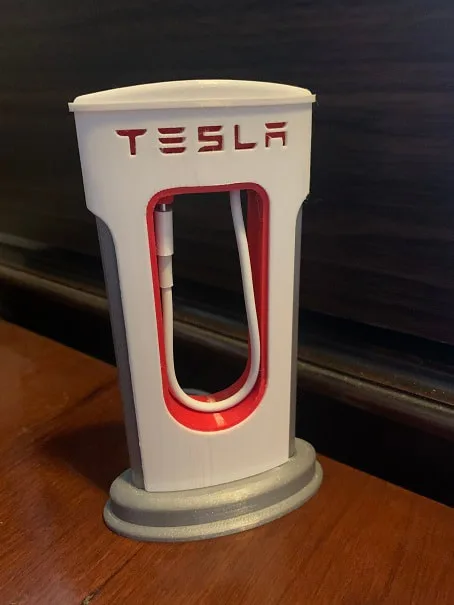

3D Printed Tesla Supercharger phone charger From Thingiverse https://www.thingiverse.com/thing:1585498
Printed in PLA and PETG on my Prusa i3MK3S. No painting was done these are just the filament (Prusament) colors I picked.
Printed in PLA and PETG on my Prusa i3MK3S. No painting was done these are just the filament (Prusament) colors I picked.
3D Printed Tesla Supercharger model, with iphone charging cable.

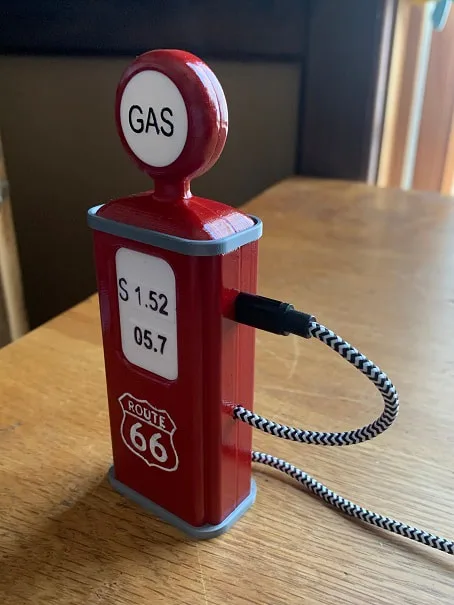

3D Printed Vintage Gas Pump I-Phone Charger, from Thingiverse https://www.thingiverse.com/thing:3158380. Printed in PLA on my Prusa i3 MK3S. The red is gloss Rustoleum spraypaint, and I hand painted the raised numbers and letters black. This disassembles to be able to remove or install the cord.

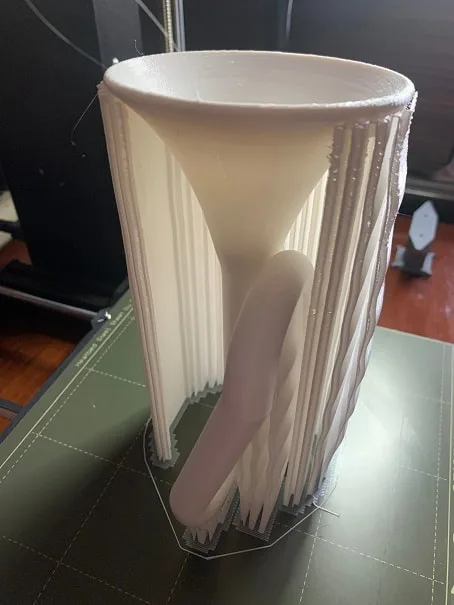

3D Printed Mini Bugle: Designed on Fusion 360, sliced on Prusa Slicer. Printed with the bell up, the supports were minimal and there are not supports inside the tubes. A one piece bugle....other than the mouthpiece. Bugle and mouthpiece files are below.
3D Printed Bugle
Here is the bugle printing on my Prusa i3 MK3S

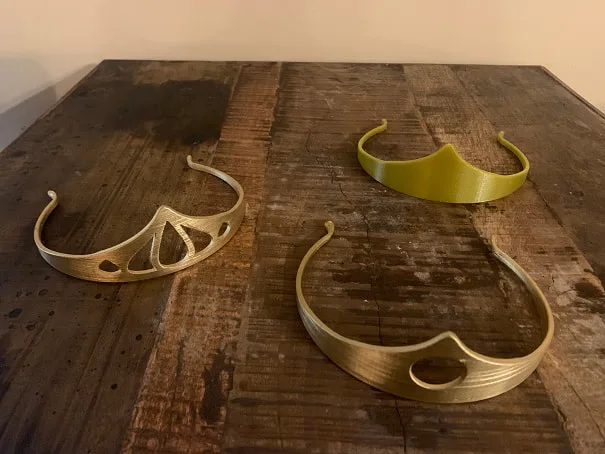

3D Printed Tiaras! These were a hit with my daughters. Designed on Fusion 360, sliced with Prusa Slicer, PETG .10 quality, no supports. Rustoleum Metallic Gloss Gold Spray paint.
Simple but strong 3D printed Tiaras. The shiny ones are painted with gloss metallic gold rustoleum, the unpainted one is unpainted Prusament gold PETG.

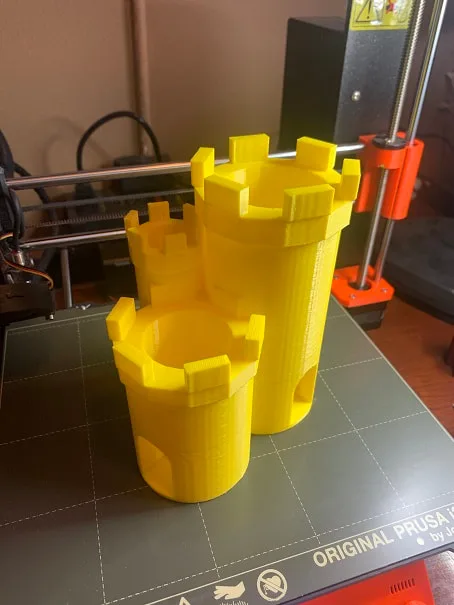

Castle Tower, designed by my daughter on tinkercad, printed in PLA on the Prusa i3 MK3S at .20 quality. Nice work Lilly!

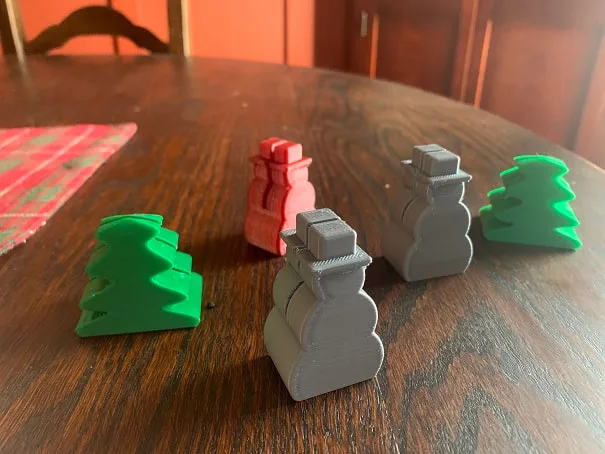

3D Printed Christmas Card Holders: Designed on Fusion 360, printed on Prusa i3 MK3S, Prusament PLA, 15% infill, .15mm quality

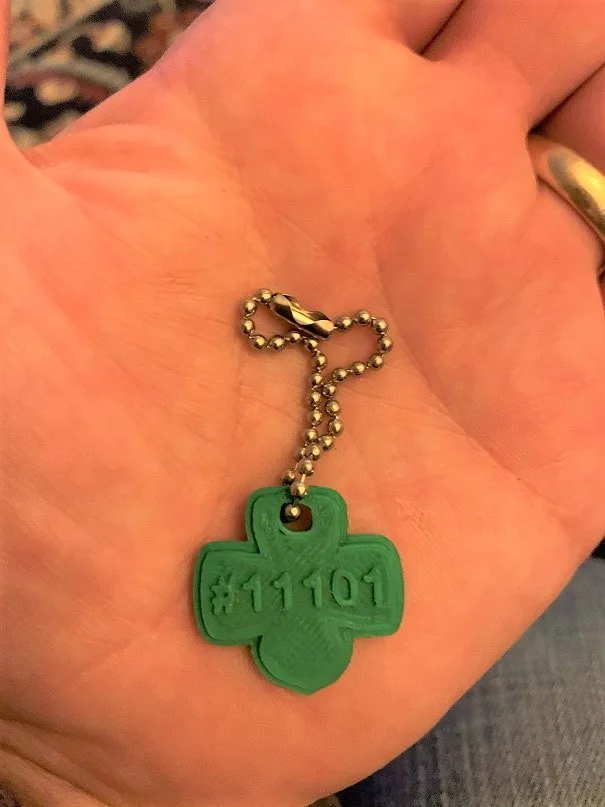

3D Printed Girl Scout Keychain project: Fun project for daughters Girl Scout Troop. Printed with the troop number on it. Designed on Fusion 360, printed on Prusa i3 MK3S, Prusament PLA, 100% infill. See how the hole isn’t round!? That is from a cog-belt on the Y-Axis of my printer. I retightened the belt and solved this going forward.
3D Printed Girls Scout Keychain
Heres the stl file for this Girl Scout Trefoil / Girl Scout Emblem. I scaled it down quite a bit in the slicer prior to printing.

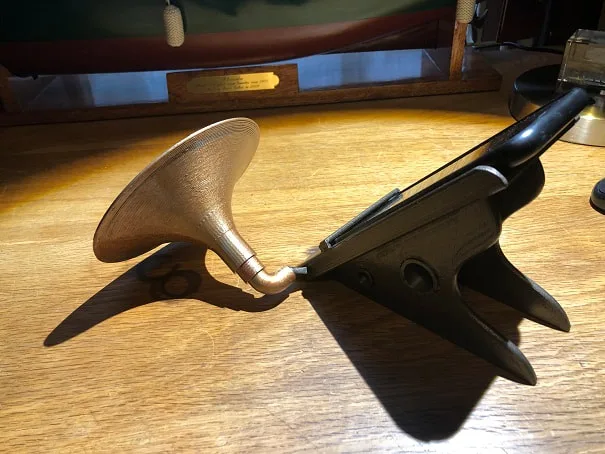

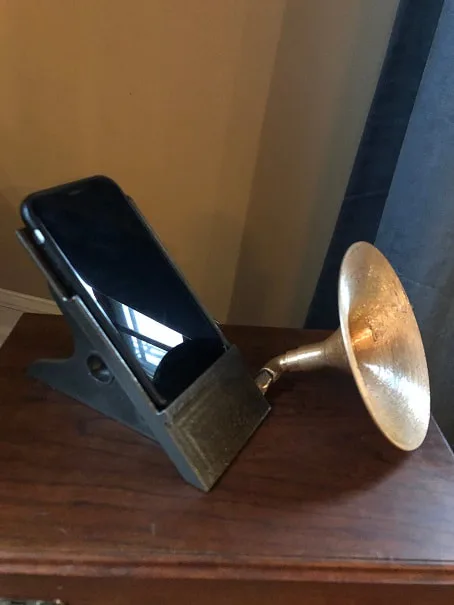

3D Printed Gramaphone Style Stand for Mobile Phone; Designed on Fusion 360, Printed on Prusa i3 MK3S in PLA. The stand features passages that are aligned with the phones speakers and that connect to the large horn. There is a separate hole in the stand for the power plug into the phone. Spray painted finish.

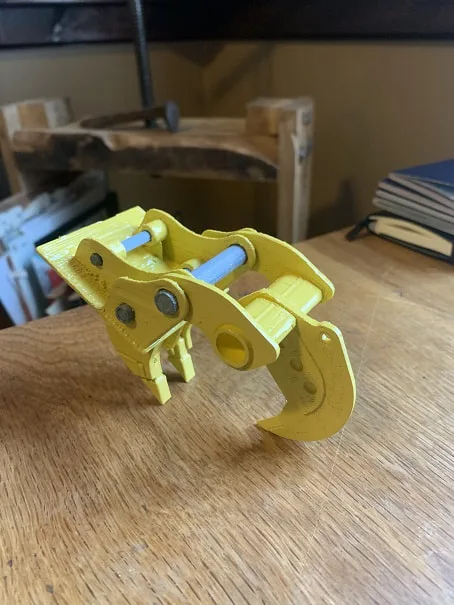

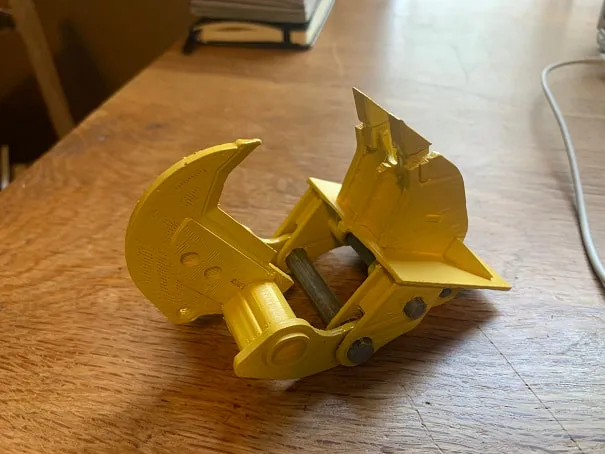

3D Printed Stump Shear, I printed this for someone at work. I got the autodesk 3D file and sliced it on PrusaSlicer and printed it on the Prusa i3MK3S in PLA. Spray painted yellow. It is printed in two main parts which printed with lots of supports, the grey pins are unpainted grey PLA. The shear opens and closes.

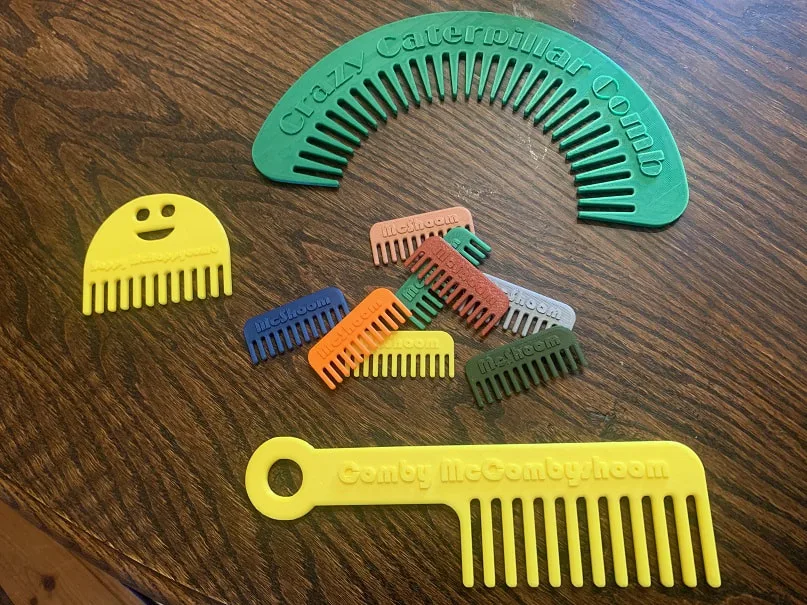

3D Printed Combs, various shapes and sizes! Printed in PLA and PETG (keep in mind PLA is not waterproof in the long run). Designed on Fusion 360, printed on Prusa i3MK3.

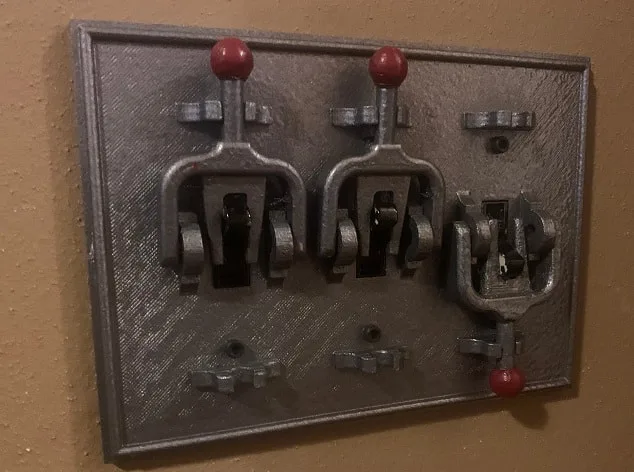

Modern Switch Plate with Old Fashion Switches. Designed on Fusion 360, printed in Prusament PETG on the Pusa i3MK3S. Sliced with Prusa Slicer. The plate consist of a face plate and separate outer trim piece. The switche handles are made of three pieces glued together: swicth handle, handle shaft and knob. Spray painted with gloss metallic Rustoleum.
3D printed modern switch plate with old fashioned style switches.

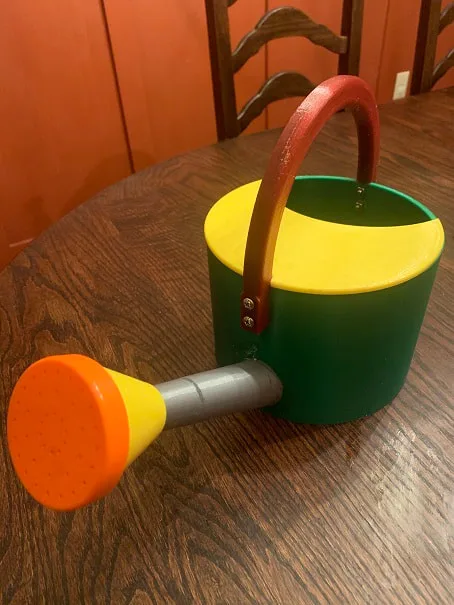

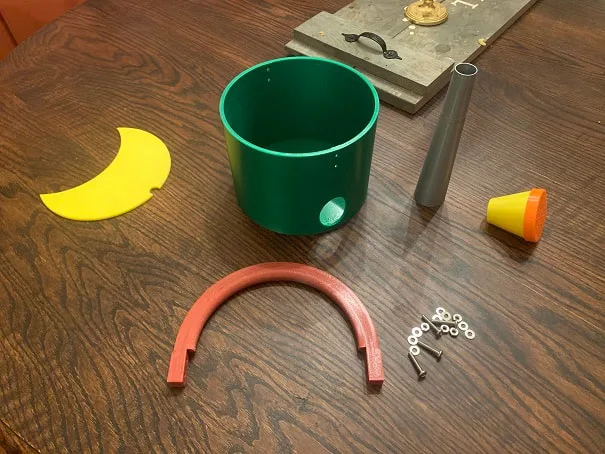

Watering Can: At the time of printing this was the largest object , after assembly, that I had made. It is 40cm long by 25cm tall. I printed it in pieces and glued the pieces together. The handle is solid PETG and the rest is Solid PLA except the main tub which I think is 60% infill. I sprayed all the PLA pieces with 2 coats of clear acrylic automotive laquer prior to assembling the pieces, to water proof them; we will see if that works.

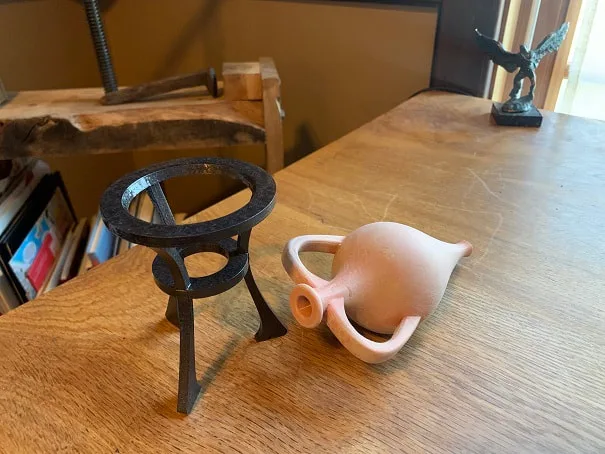

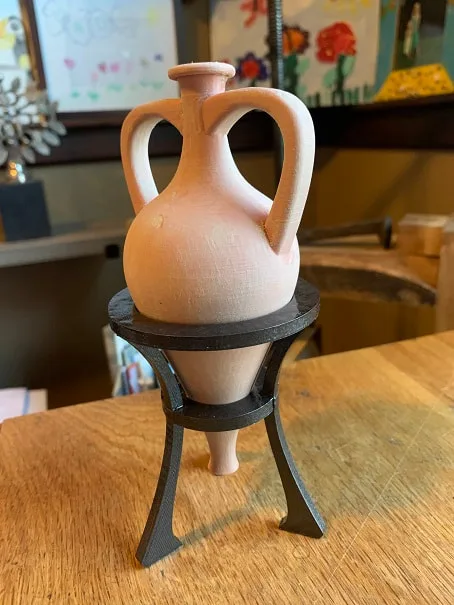

3d Printed Roman Amphora Model and Stand: Drawn on Fusion 360, Prusa Slicer 60% infill. Amphora is Terracotta color Prusament PETG, the stand is PLA painted with hammered metal Rustoleum Spray Paint. To avoid excessive support printing, the stand is printed in pieces and glued together.
3D Printed Roman Amphora
The amphora is hollow.

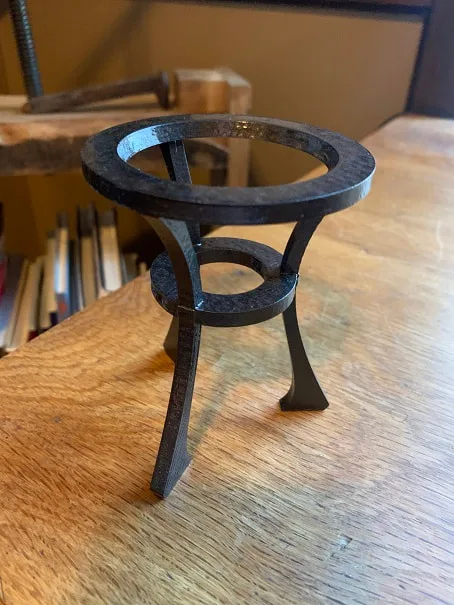

Amphora Stand

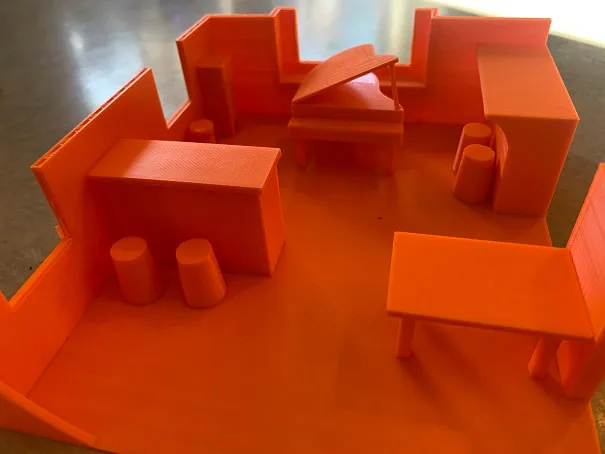

3D Printed Music Room Model: We are looking at adding a baby grand piano and are not sure how to arrange the room. I printed up the room, our furniture, and the piano we are looking at. The furniture is all printed separately so it can be rearranged aroudn to see how we want to arrange the furniture in the room. My wife had asked for a sketch, but this is a better way to visualize the space!

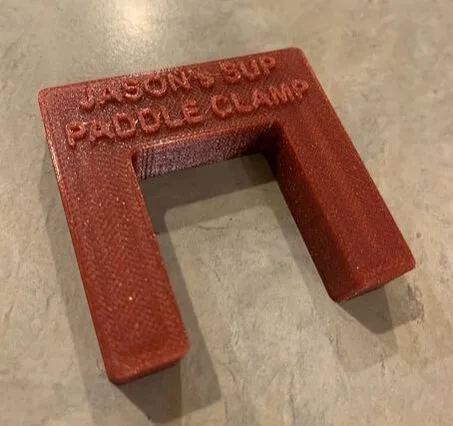

3D Printed Clamp for aligning laminations of the shaft of a paddle for Stand Up Paddleboarding: This fixed-jaw clamp will be used to ensure laminations of the long handle on a SUP paddle stay aligned during the glue-up process. Made for aligning laminations on 1.25" x 1.125" paddle shafts. Designed on Fusion 360, sliced on PrusaSlicr, 50% infill, Prusament PETG.

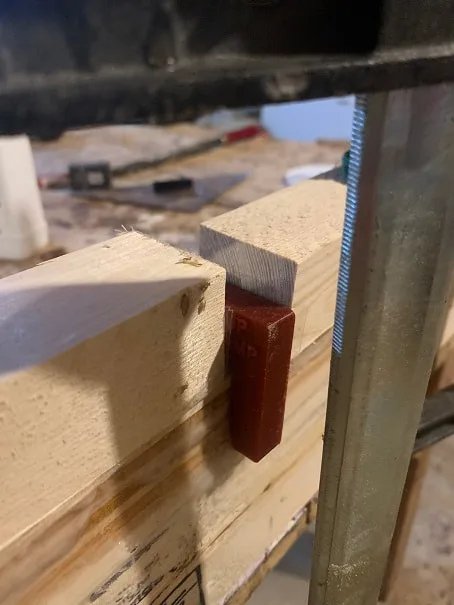

Here is the clamp in-place, helping to align the laminations of a SUP paddle.

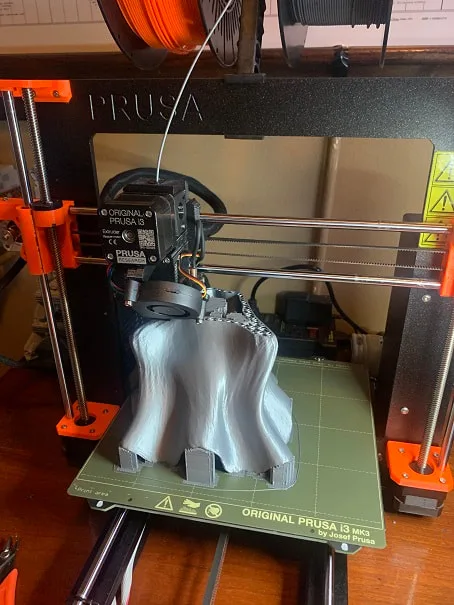

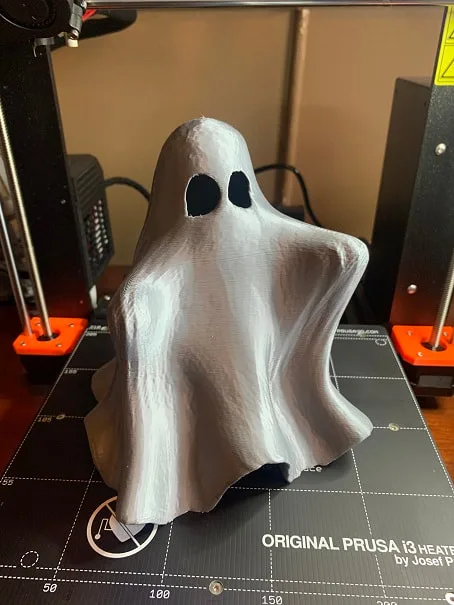

3D Printed Big Ghost: My daughter found this ghost on Thingiverse and first printed the little one seen further below. Then we printed this 8" (20cm) tall version. We printed this in PLA at 15% infill at .15quality and it took about 25hrs.

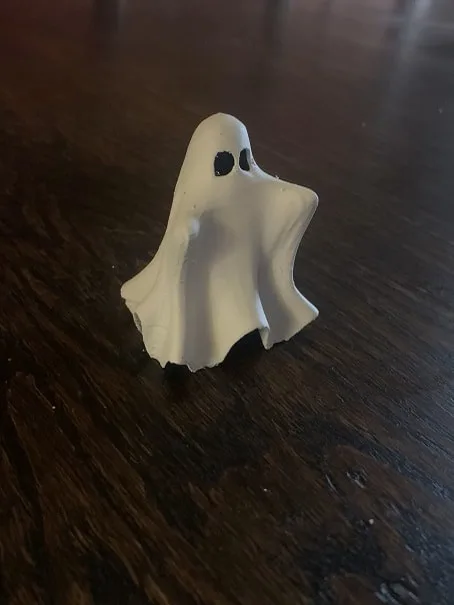

3D Printed Little Ghost: My daughter found this on Thingiverse and wanted it for Halloween. Printed in grey PLA and spray painted white, 2.5" tall.

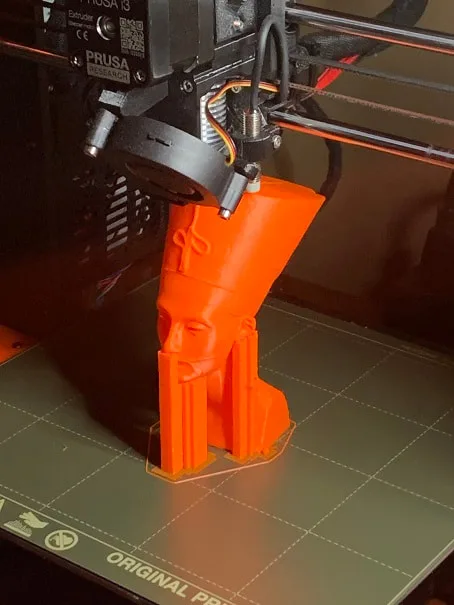

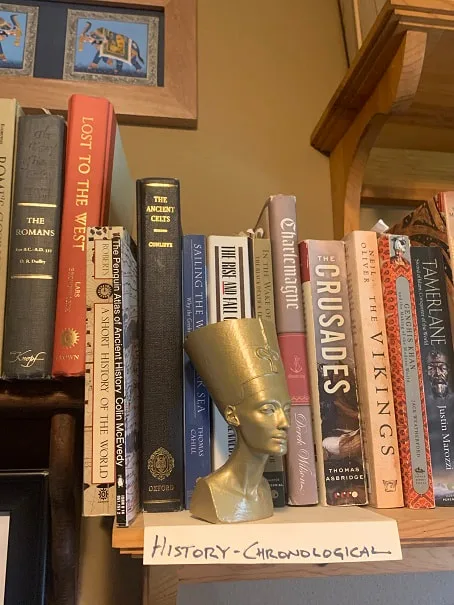

3D Printed Nefertiti Bust: stock print file that came with the printer. Printed in PLA and spray painted gold.

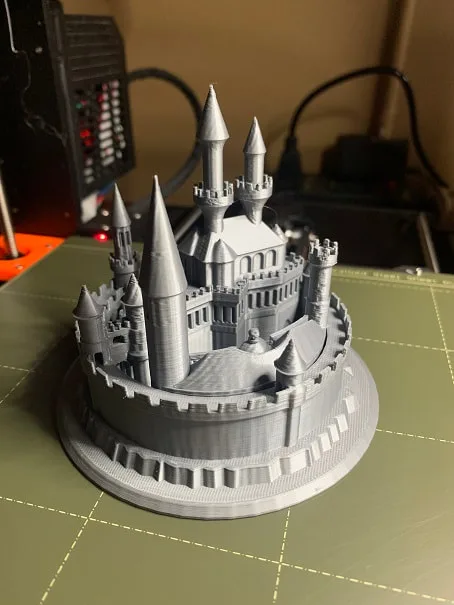

3D Printed Castle: Stock print file that came with the printer. Printed in Prusamanet PLA.

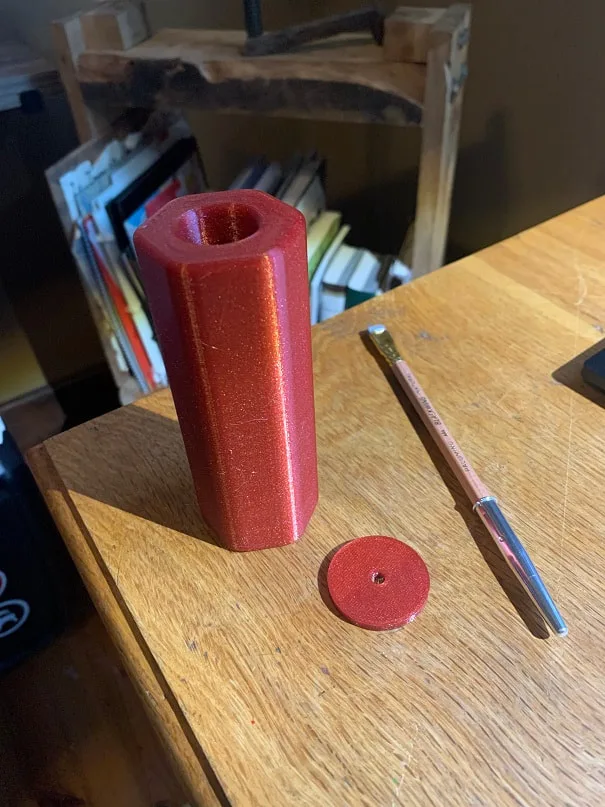

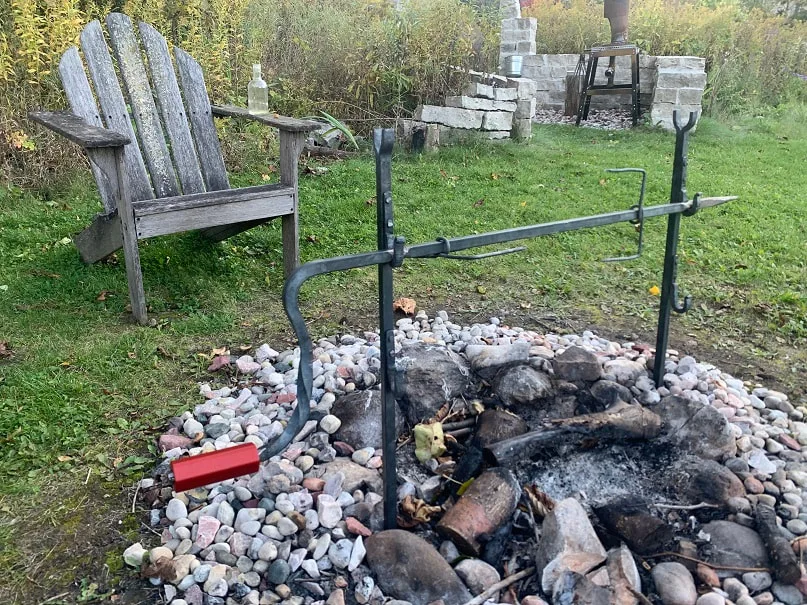

3D Printed Handle for Roasting Spit; Designed on Fusion 360, Printed on Prusa i3 MK3S, Prusament PETG, 50% infill, .10 quality. I made the roasting spit below in my backyard blacksmith shop. The PETG has held up well against the temperature from the coals in this application.

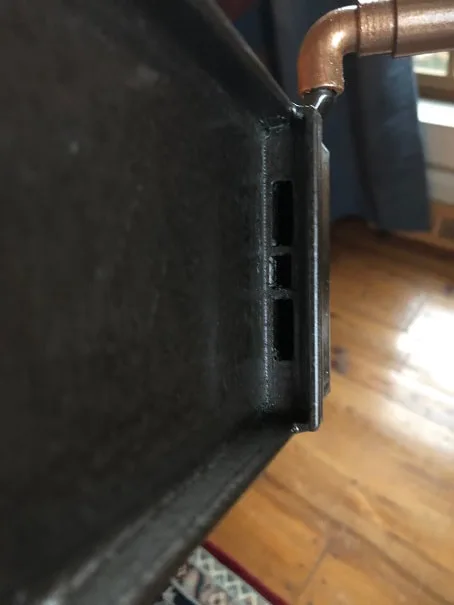

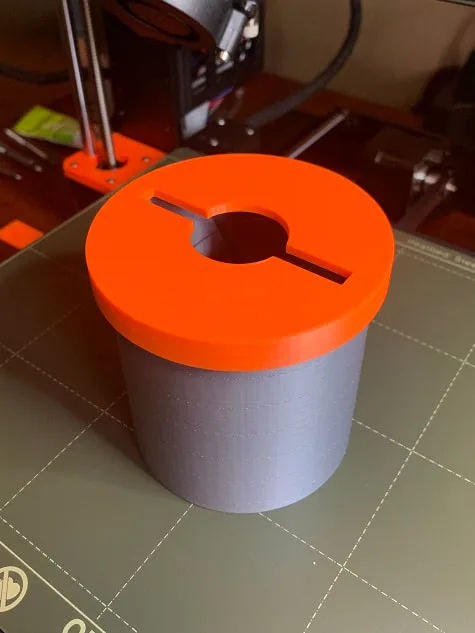

3D Printed Filament Scrap Bin: PLA 100% infill .20 speed. I wanted a container small enough to put on the desk, that I could put scrap filament and scrap supports in. This is 80mm diameter and 90mm tall and has a removable top.

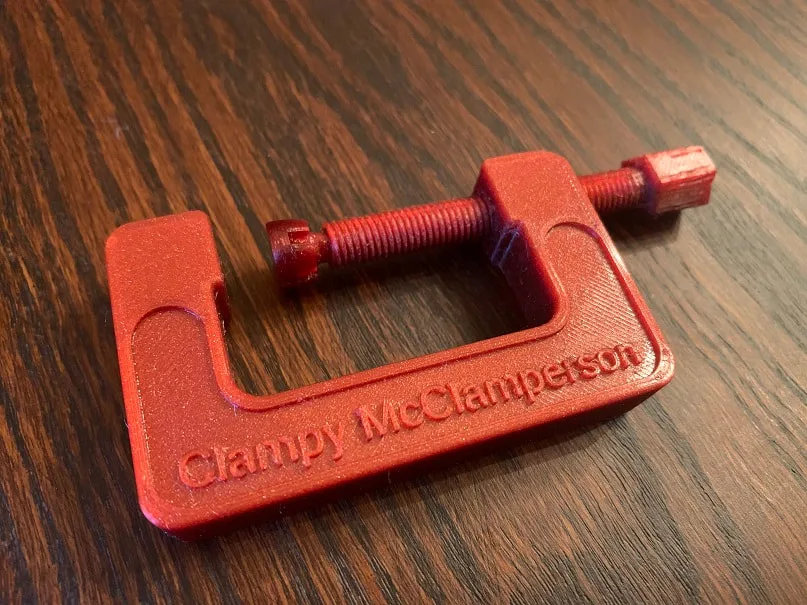

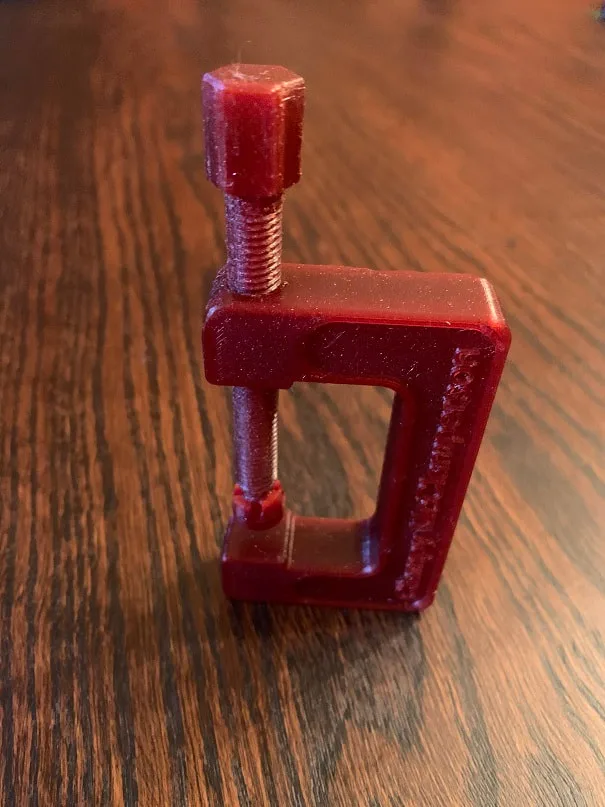

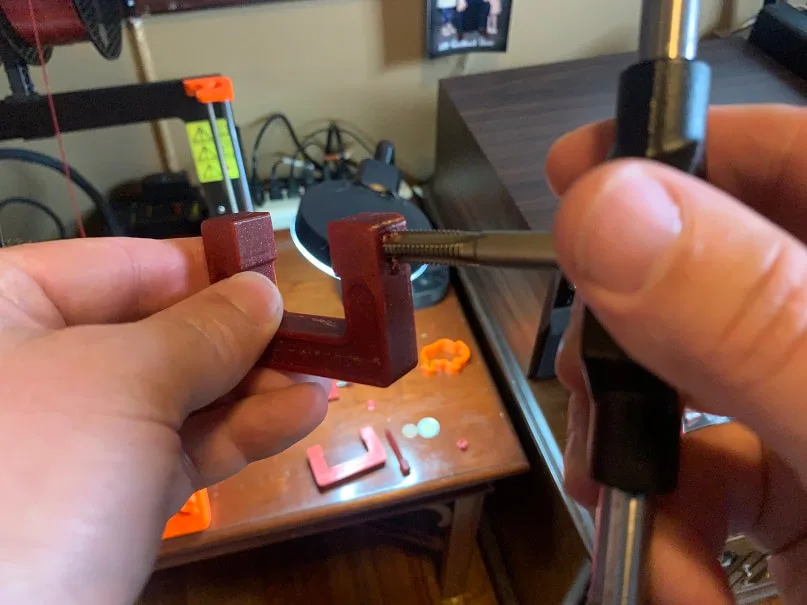

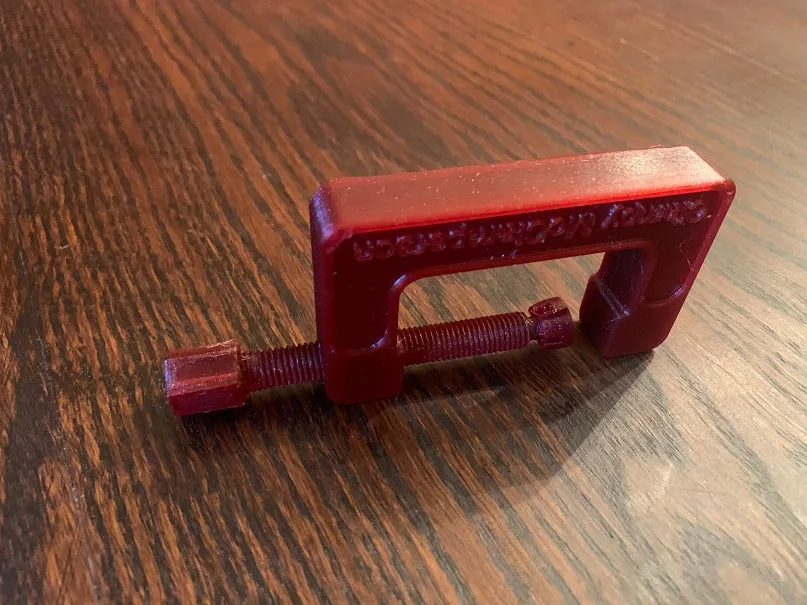

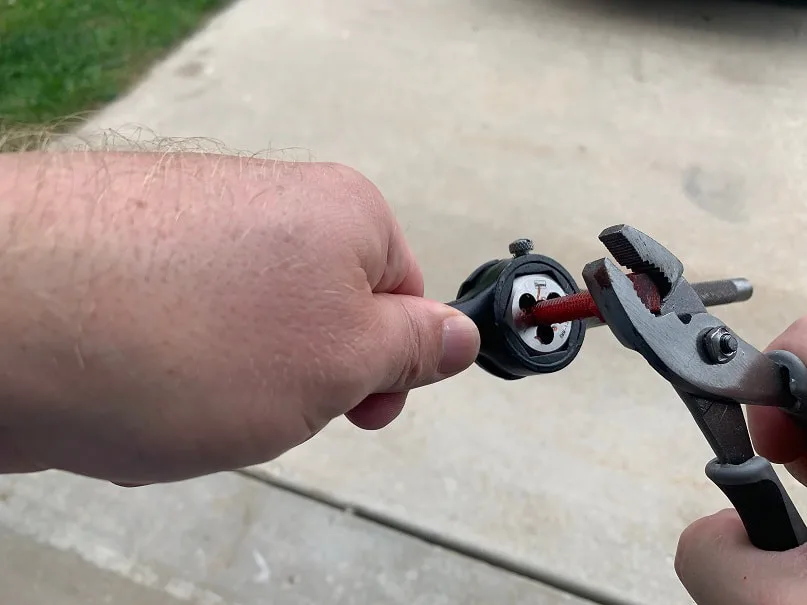

Clampy McClamperson! 3D Printed C Clamps. PETG 100% infill , .07 ultradetail. After printing the threaded parts, they must be chased with taps and dies. I designed 3 sizes. I designed these clamps be able to be self supporting on all sides (except the side that the threaded rod comes out of). I printed the threaded rods of these clamps horizontally so that the laminations ran the length of the threaded rod. Then I trimmed and chased the interior and exterior threads with taps and dies; cutting oil was needed to avoid snapping the rods during the chasing of the OD threads.

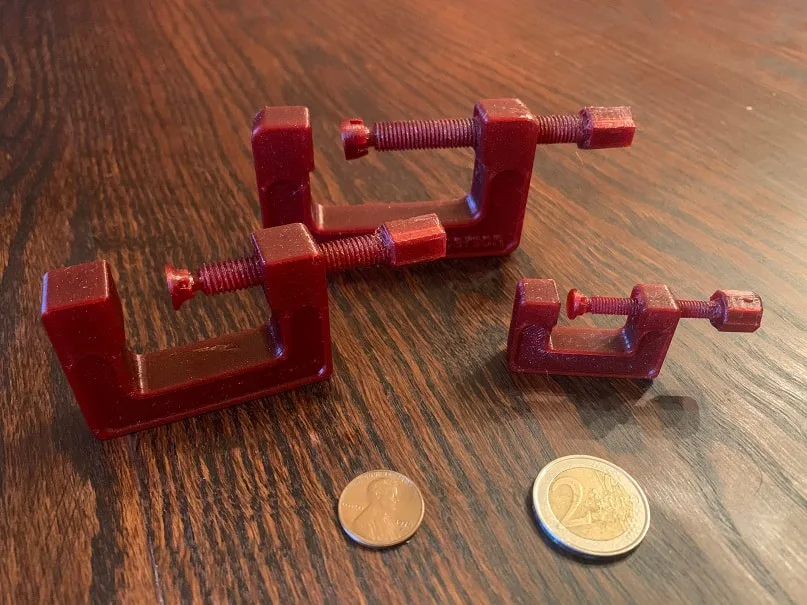

3D Printed C-Clamps
A tap and die for M9x1.25 thread are needed to complete the clamp using the print files below:

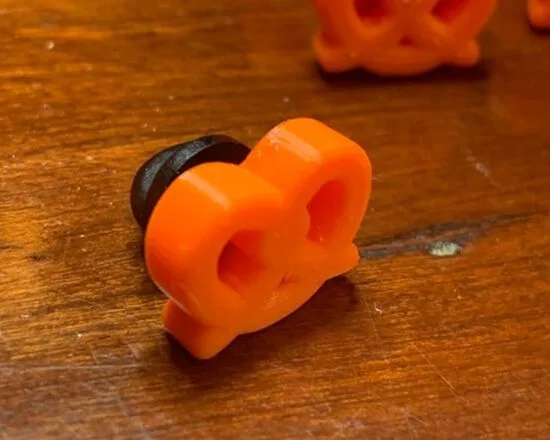

3D Printed Oktoberfest Pretzel Pins, for lapels or a hat. These were fun to make. The metal pin and rubber pin-back are from Amazon and I glued them to the pretzel with Devcon Weld-It clear adhesive. I made a little pretzel shaped box for them also, and brought them to an Oktoberfest Party (outside party and because it's 2020 I had the 'ole canister of sanitizer for people to use before grabbing a pin).
Pretzel Pin, 100% infill, Prusament PLA, .07 detail

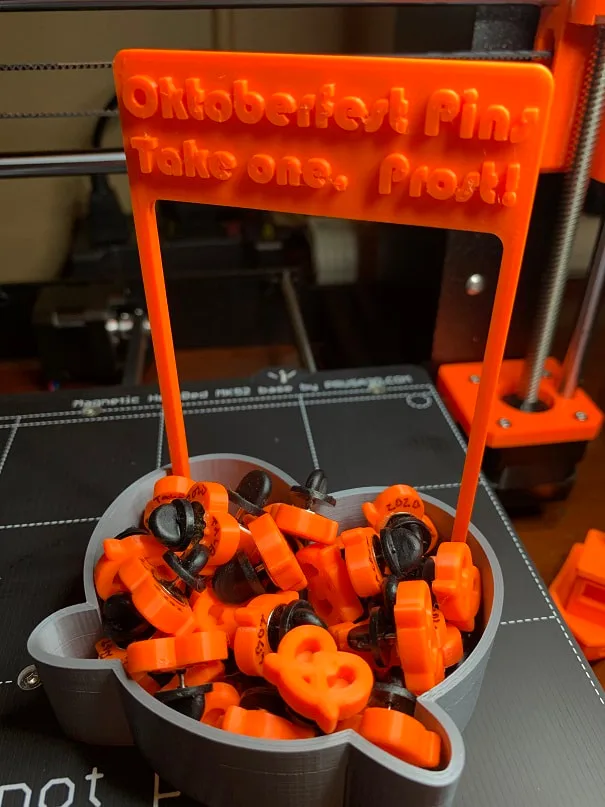

Oktoberfest Pretzel Pins in a pretzel shaped display box.

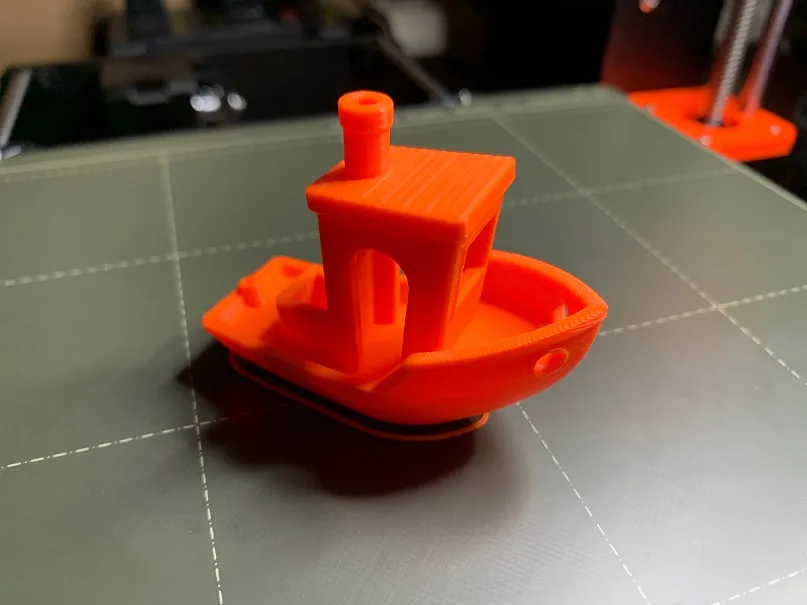

3D Benchy, I decided to print some objects that I did not design, including this little boat.
3D Benchy, printed in Prusament PLA

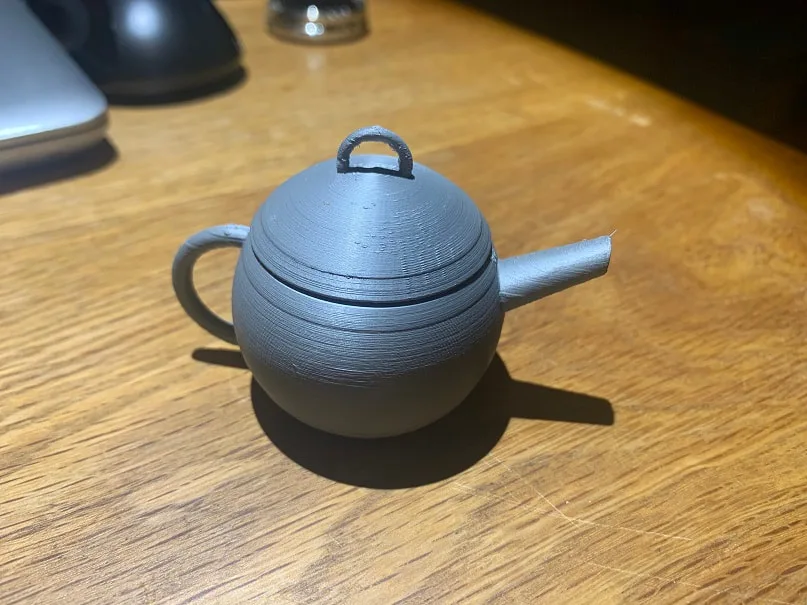

3D Printed Play Tea Pot, 8mm long, designed on Fusion 360 by my 12 year old.
Tea Pot, design in Fusion 360, Prusaslicer, Prusament PLA, 50% infill, .07mm detail. My 8 year old arrived at the printer and accelerated the print speed a couple times during printing which changed the look of the print. In these sections she sped it up to as high as 600% print speed, and when I caught this I returned it to 100%. This is a hollow tea pot, with hollow spout, function for play. The photo is of the parts with no sanding or finishing afgter printing.

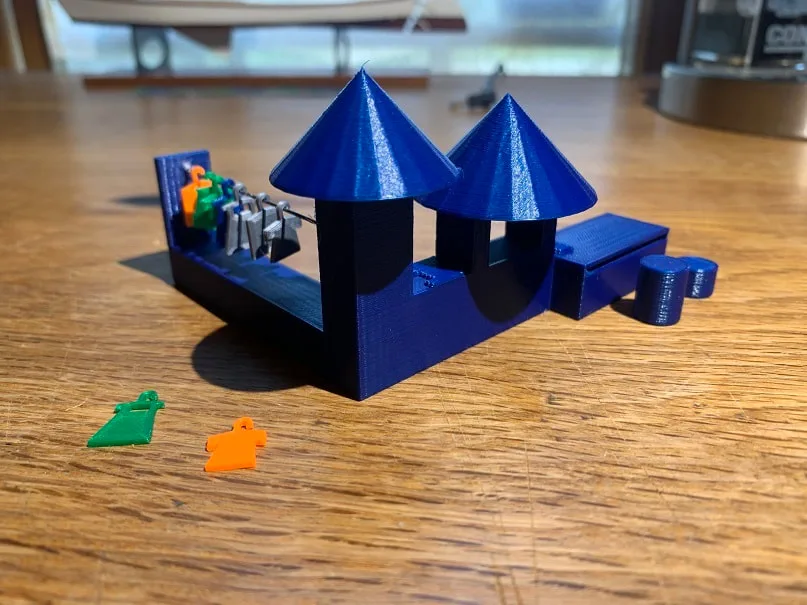

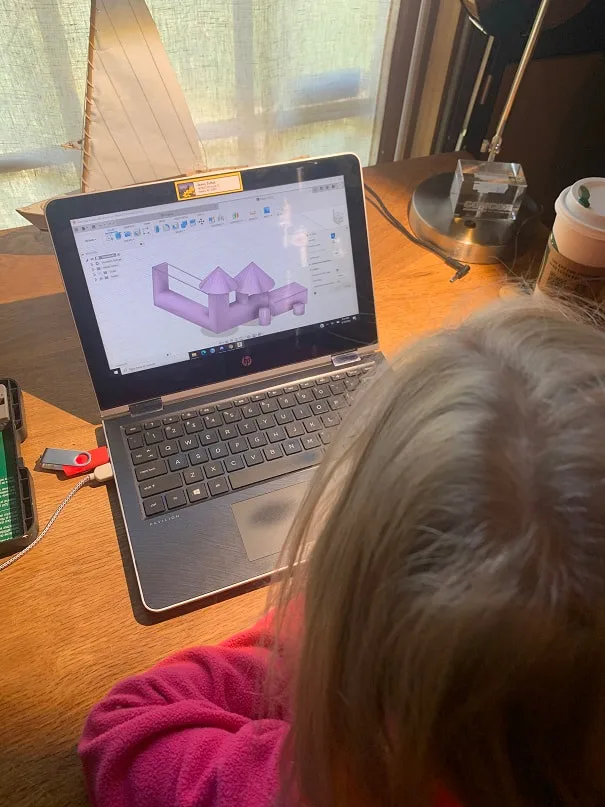

Dress Shop, called "Shine" , designed by my 8 year old. The clothes rack rod is metal, I added that to the model after it printed.
Designed on Tinkercad and Fusion360, printed with Prusament PLA, 25% infill.

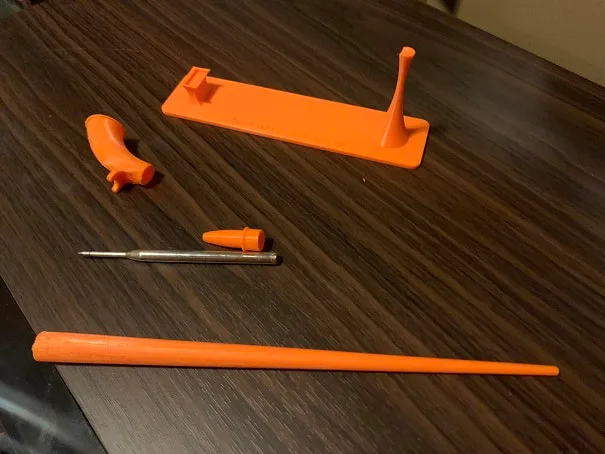

3D Printed Alphorn Pen with Stand. I built and play an actual alphorn, build log here. And I wanted to design and print one. The real alphorn is 12' 6" long, the pen is 1/14 scale. The pen is printed in 3 pieces: Cap, tip, and body. The pen uses a Caran d'Ache Goliath refill. The stand is printed in 1 piece.

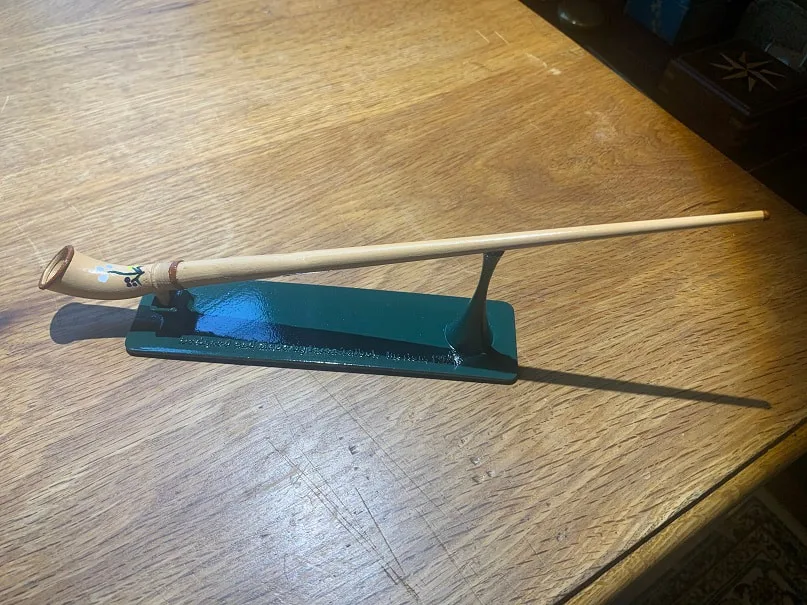

Finished and painted alphorn pen. 1/14 scale with Caran d'Ache Goliath refill inside.
Alphorn pen with stand. 100% infill, Prusament PLA, .07mm detail.
Here are the .STL drawings for the Alphorn Pen. When I open them up with Fusion 360, I need to scale them down x0.10 to get them to be the right size.
Here are the gcode files that I used to print the Alphorn Pen on my Prusa i3MK3S:

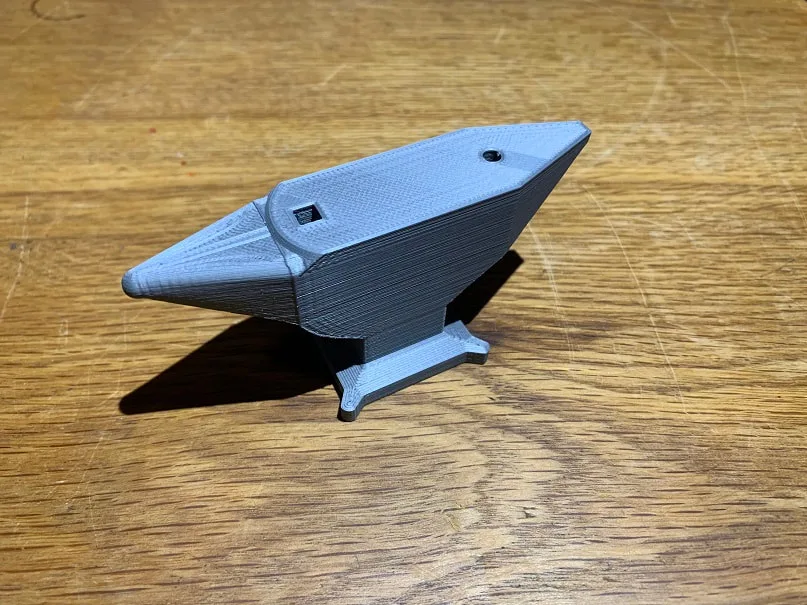

3D Printed Anvil. Scale replica of my Kanca anvil. You can check out my blacksmithing page here
Kanca Anvil model, designed on Fusion 360, printed with 25% infill, 0.20mm quality, Prusament PLA.

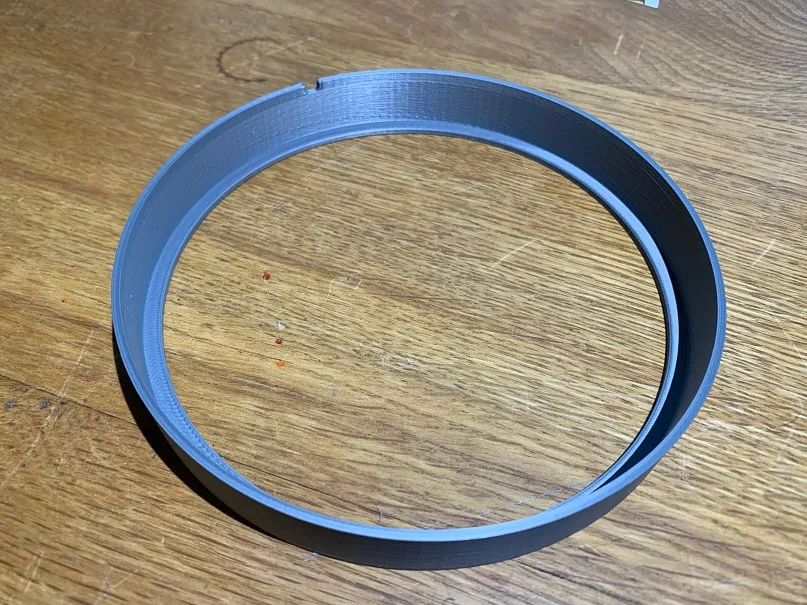

3D Printed Smoke Detector Spacer Ring. Used to provide space for wires when mounting the smoke detector under a shelf above my printer. There is a small notch for the wires to exit the ring.
3D printed smoke detector spacer ring. Printed in PLA, 100% infill, 0.20mm layer thickness.

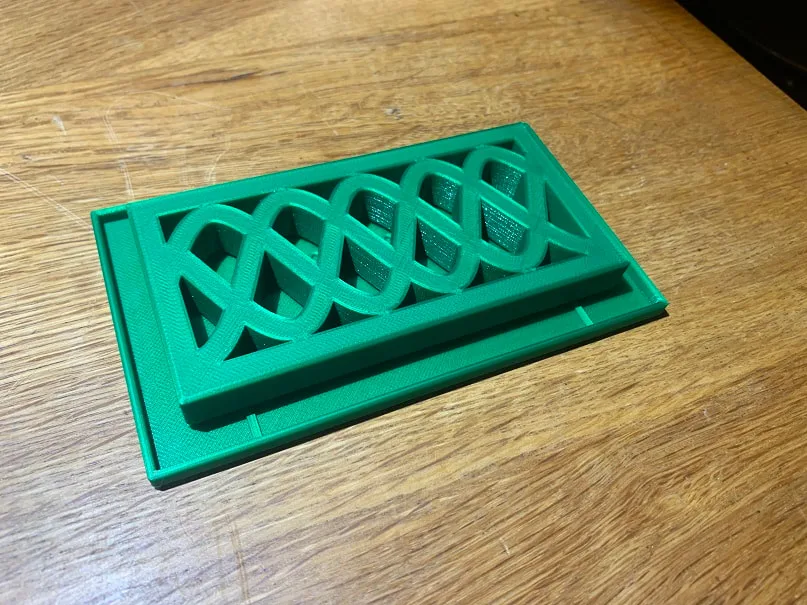

3D Printed Soap Dish
Soap grate and tray, designed on Fusion 360, printed on Prusa i3 MK3S, Prusament PLA or PETG, 40% infill. I recommend PETG, as PLA is not Waterproof.

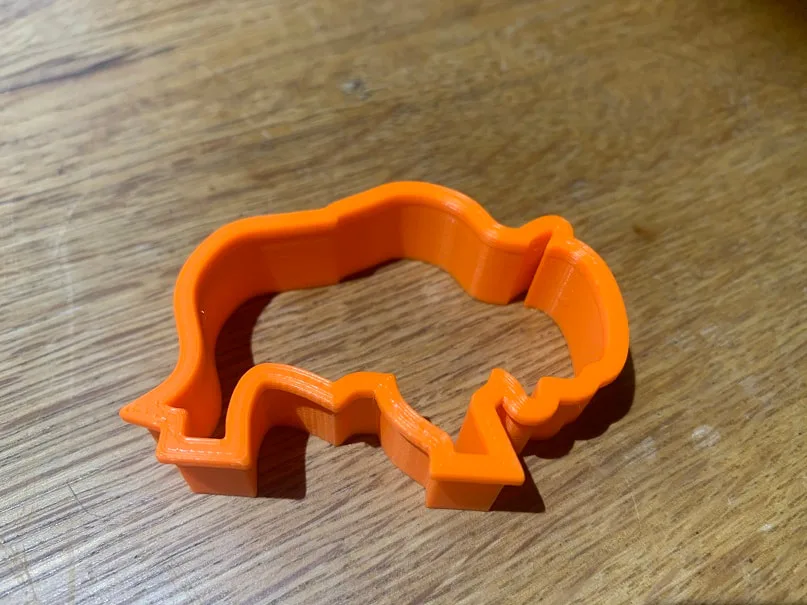

3D Printed Bison Cookie Cutter
Bison cookie cutter. Designed on Fusion 360, printed with Prusament PLA filament, 100% infill, .07 detail. We drove to Custer State Park in South Dakota this year and saw huge herds of these majestic animals. This is the first self-designed object I printed and it was a nice simple print to start with.

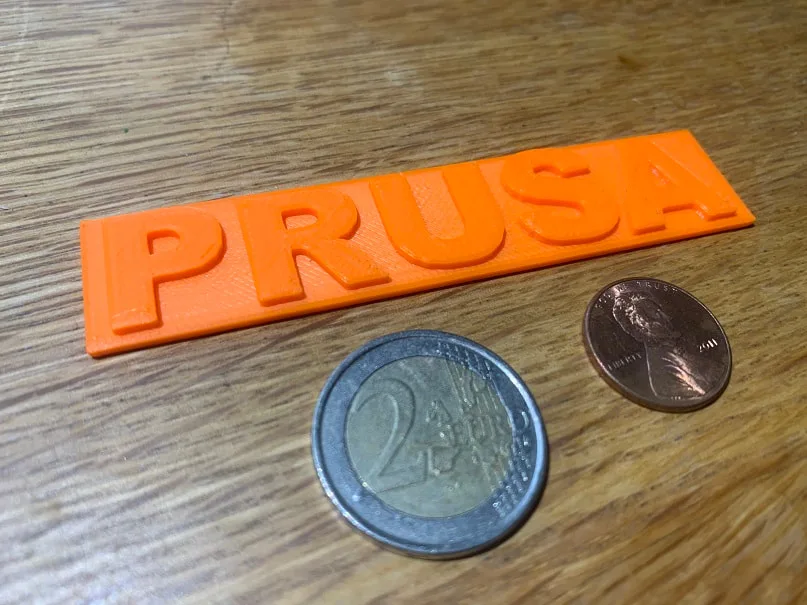

Prusa name tag , 1st test print after assembling the printer.
This name tag is the first object printed from the PRUSA i3 MK3S that I built from a kit. It worked on the first try. This design came with the printer, I did not design this part.
