These are the hand tools and anvil tools I selected to get started in blacksmithing with. I also include below, tools that I made myself.
I ground this oval tapered drift from a masonry chisel, and use it for making handle openings in small hatchet heads.

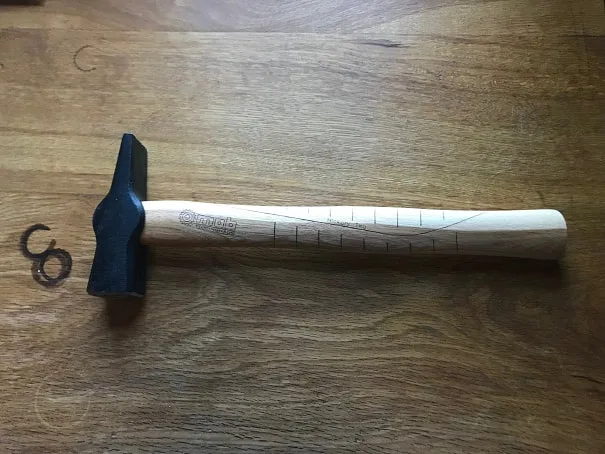

1.6 Pound Blacksmith Cross Peen Hammer in the Swedish Pattern

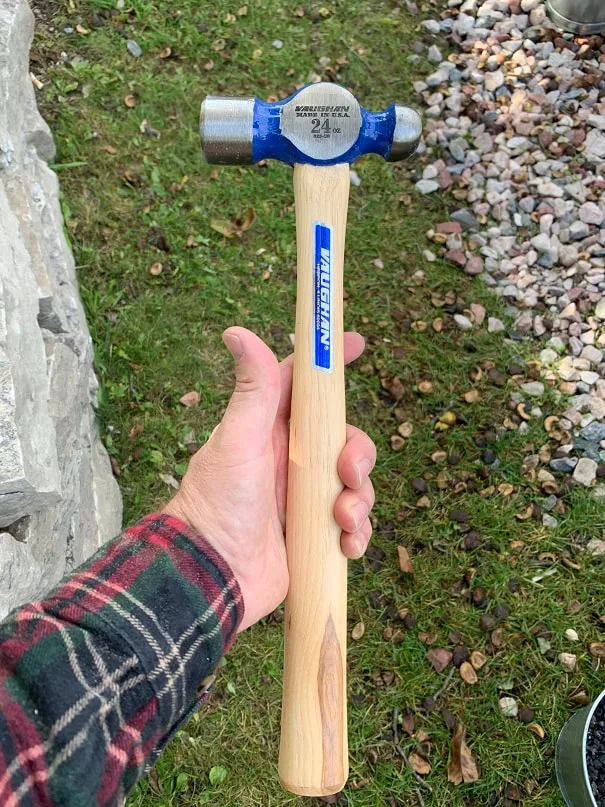

24oz Ball Peen Hammer

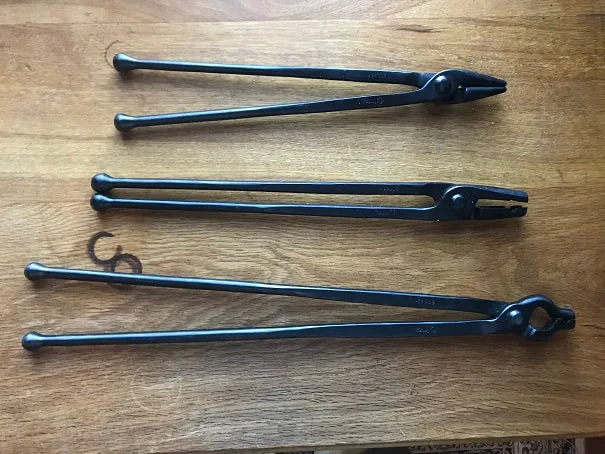

These are real beauties. From top to bottom: Scrolling Tongs with 13.5" reins, 5/8" Straight V-bit tongs with 13.5" reins, 1/4" V-bit tongs with 18" reins.

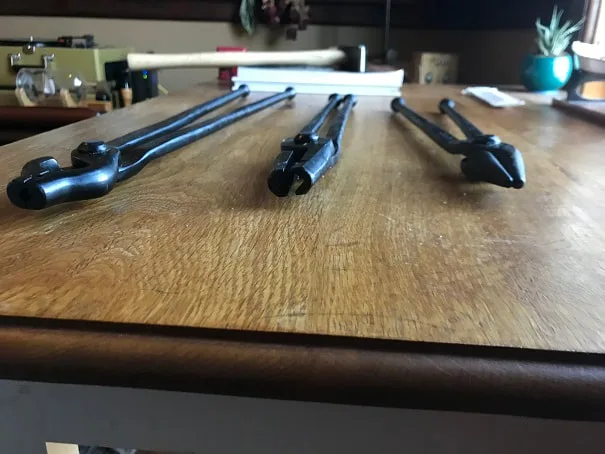

End view of the tongs above.

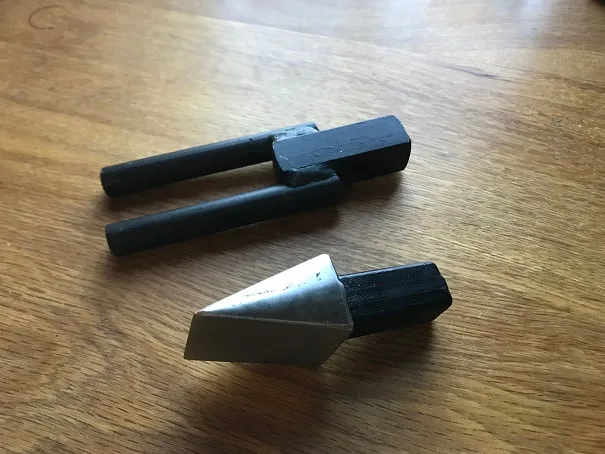

Hardie Tools. The square stock of these fit into the hardie hole in my anvil. I selected a hot cut chisel, and a bending fork.

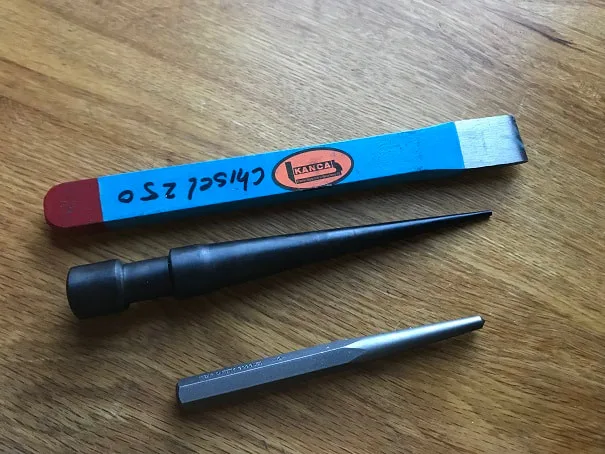

Hand chisel, Round Punch for making holes, Center punch for marking. I intend to make my square punch.

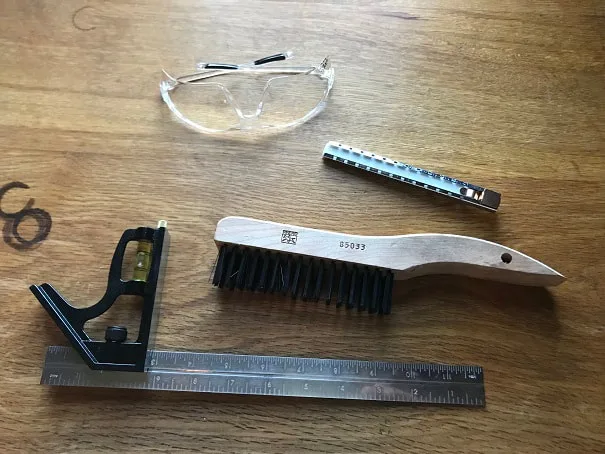

Wire brush for brushing scale off of heated metal prior to hammering on it. Soapstone pencil for marking. Safety glasses. Steel square.

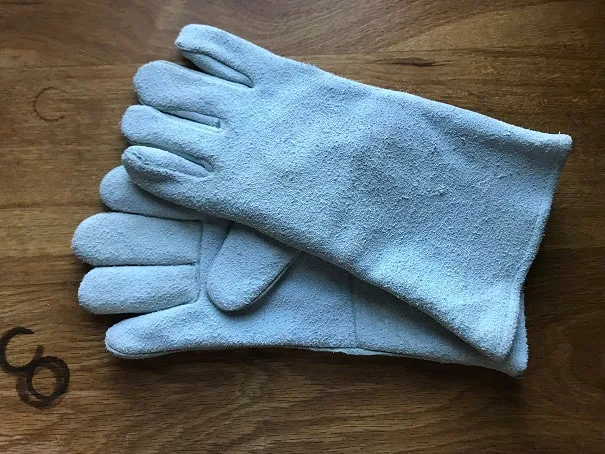

Thick leather gloves for use if and when needed. I haven't found myself using them yet but I want them if needed. I hold hot material with tongs, and it is not recommended to hold your hammer in a gloved hand.
- A 4.5" hand grinder
- Hand files
- Tape measure
- Large fire extinguisher
- Clamps
- Clear full-face shield that I wear when grinding
Making a Pritchel Plate

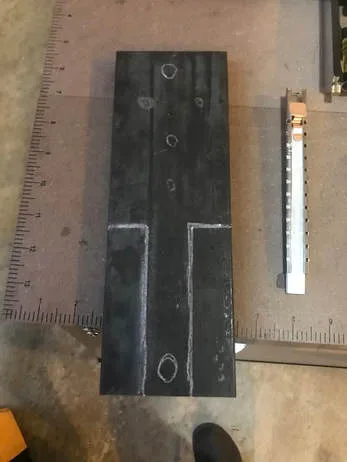

Layout of pritchel plate marked out using soapstone.

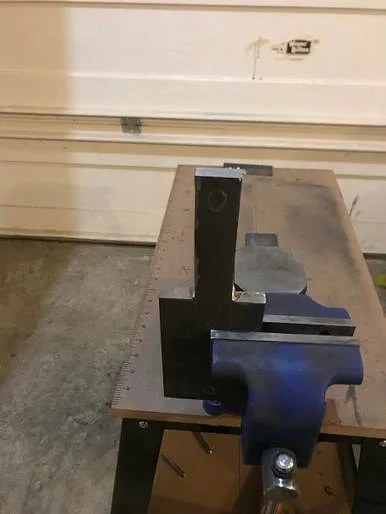

Handle cut to shape using a cutoff wheel in a hand grinder. A torch or plasma cutter would be quicker, but I don't have those tools. I saved the drops for future projects.

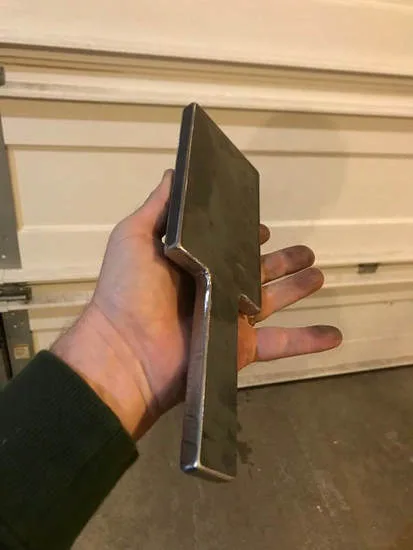

Ground and filed all the edges and corners smooth.

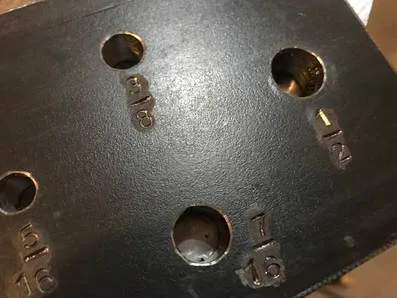

Drilled the holes and marked the hole sizes with punches.

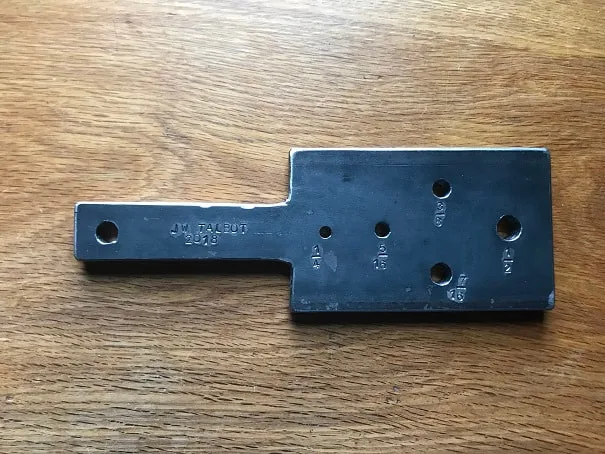

Completed pritchel plate!

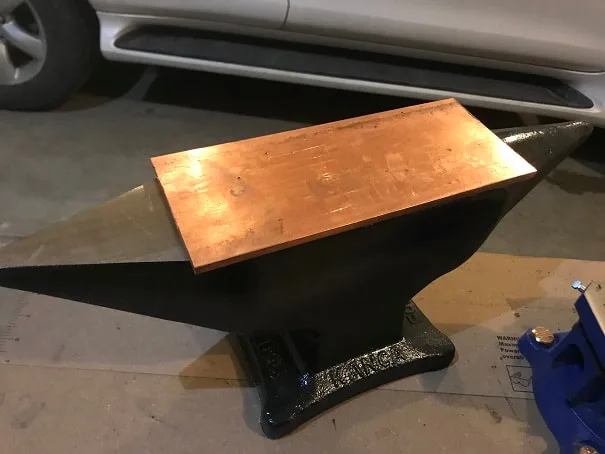

1/4" thick copper plate , the width of my anvil. I will place this on the anvil when using a hot chisel to cut through metal, to protect the surface of the anvil, and to provide a soft base material for my chisel to come into contact with.
Making a Bar Twister for Blacksmithing

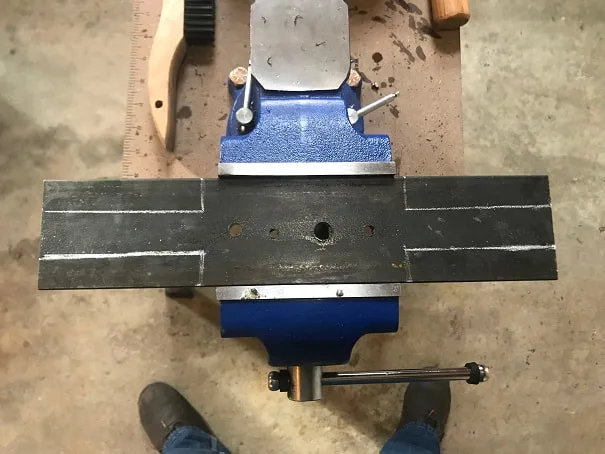

3/8" x 3" x 14" mild steel plate. I have marked out the handles and have drilled a 1/4" hole, 5/16" hole, 3/8" hole, and 1/2" hole which will be the ends of the slots in the bar twister.

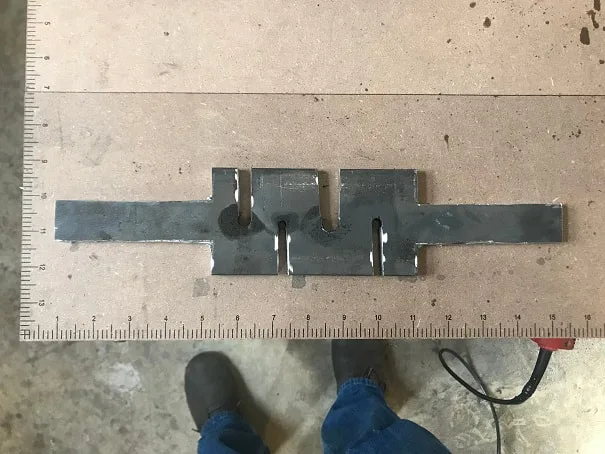

Twisting bar, rough cut out with a hand grinder with an abrasive cutting wheel in it. It would be easier and quicker to cut such a thing out using a plasma cutter or torch, but I do not have those tools. End result is just what I wanted.

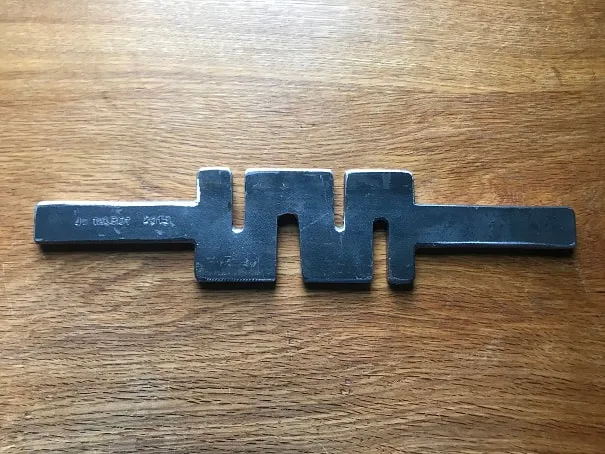

Finished Bar Twister for use in blacksmithing. All the edges are rounded off and the slots are dressed and ground. The slots, from left to right, are 5/16", 1/2", 1/4", 3/8"

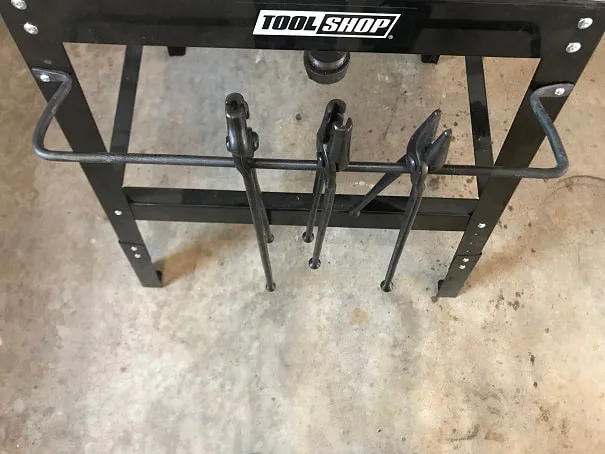

Tool Rack

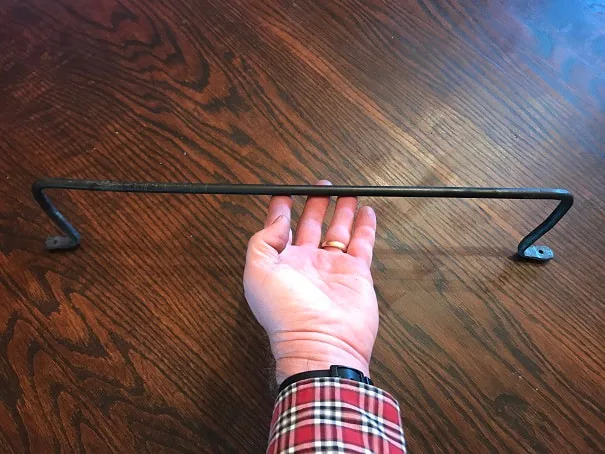

This simple rack was one of the very first things I made using the forge that I built. It is made from 3/8" round stock.
Hold-fast
I made this hold-fast from 5/8" round bar.
